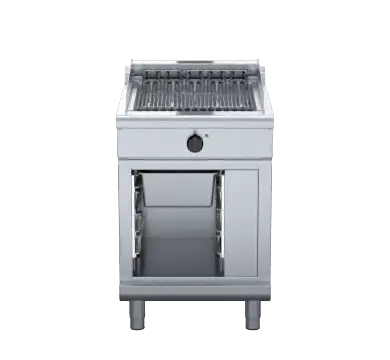

Waldorf 800 Series CHL8600ED-CB - 600mm Electric Chargrill Low Back Version - Cabinet Base

Waldorf 800 Series CHL8600ED-CB - 600mm Electric Chargrill Low Back Version - Cabinet Base

$8,970.00 - $8,970.00
$8,970.00
$8,970.00 - $8,970.00
$8,970.00
SKU CHL8600ED-CB

Waldorf 800 Series CHL8600ED-CB - 600mm Electric Chargrill Low Back Version - Cabinet Base is a heavy-duty electric Chargrills / Barbecues configured for high-output grilling with rendered flavour and defined grill marks. Its 600mm width and cabinet base with a low-back profile allow it to be planned as one working module in a coordinated professional cookline.

  • 8.4kW heating power.
  • 450mm x 590 mm cooking area.
  • Direct contact cooking elements with fast response heat control.
  • Up to 400C cooking temperature.
  • Vitreous enamelled control panel.
  • Four 63mm dia. Heavy-duty stainless steel legs with adjustable feet at the front and two rollers at rear.
  • Optional GN 1/1 4 position racking kit.
Why Choose This Product.

Choose CHL8600ED-CB when a 600mm grill in cabinet base matches the peak number of proteins and genuine chargrilled flavour is central to the menu. 8.4kW heating power. and reversible grates support zone management, while removable radiants, baffles and grease collection matter every day. Size extraction for the actual load, not only the appliance connection. Compare CH8900ED-CB adds working capacity; CH8600ED-LS keeps a similar cooking platform with a leg stand.
Simply Hospitality Notes

Our advice: map CHL8600ED-CB's usable cooking zones to the peak menu and confirm extraction from the actual grease, smoke and heat load. Check utensil reach, raw-to-cooked separation, grease or ash removal, landing space and daily clean-down access before finalising width and base configuration.

Product Guide

Use CHL8600ED-CB for high-output grilling with rendered flavour and defined grill marks. Compare usable surface width, independent zones, heat source, plate or grate construction and the base below. Gas chargrills emphasise controllable grill flavour, griddles provide a flexible flat surface, and solid fuel adds theatre and flavour with greater ventilation and labour demands.

Brand Guide

About Waldorf: Waldorf 800 Series is Moffat's heavy-duty modular cookline for demanding professional kitchens. Its 800mm-deep platform spans ranges, griddles, chargrills, fryers, pasta cookers, bratt pans, induction and complementary modules, allowing a suite to be configured around menu, workflow, utilities and storage. The value lies in choosing each top, width and base as one coordinated system, backed in New Zealand by Moffat's technical, parts and service network.

Capacity, cooking system and controls

  • 8.4kW heating power.
  • 450mm x 590 mm cooking area.
  • Direct contact cooking elements with fast response heat control.
  • Up to 400C cooking temperature.
  • Vitreous enamelled control panel.

Construction, safety and cleanability

  • No cooking grates required.
  • Manual water filled cooking well with drain.
  • Four 63mm dia. Heavy-duty stainless steel legs with adjustable feet at the front and two rollers at rear.
  • Heavy-duty stainless steel finish.
  • Fully modular, easy to clean and service.

Configuration and included equipment

  • 600mm electric chargrill with cabinet base.
  • Optional GN 1/1 4 position racking kit.

Technical specifications

ModelCHL8600ED-CB
Equipment typeChargrills / Barbecues
Overall dimensionsW 600mm x D 805mm x H 970mm
Packed weight127kg
Packed volume0.7m³
Published heat input / power8.4kW heating power
Cooking surface / construction450mm x 590 mm cooking area
Configurationcabinet base, low-back profile

Documents

  • Dimension W: 600mm D: 805mm H: 970mm
  • Weight 127kg packed
