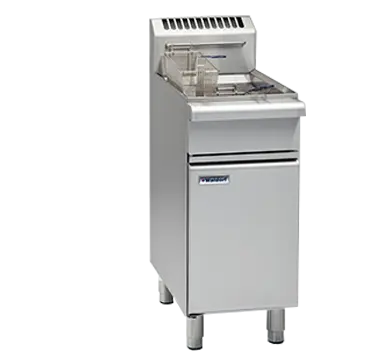

Waldorf 800 Series FN8118G Single Pan Gas Fryer - 400mm

Waldorf 800 Series FN8118G Single Pan Gas Fryer - 400mm

$4,833.00 - $4,833.00
$4,833.00
$4,833.00 - $4,833.00
$4,833.00
SKU FN8118G-LPG

Waldorf 800 Series FN8118G Single Pan Gas Fryer - 400mm is a heavy-duty gas Fryers configured for repeatable fried-food production through sustained service. Its 400mm width and integrated floor model allow it to be planned as one working module in a coordinated professional cookline.

  • 18L oil capacity.
  • 90MJ multi-jet target burner.
  • Mechanical thermostat.
  • Easy clean stainless steel open pan.
  • V-tank with cool zone.
  • Over-temperature safety cut-out.
  • 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with adjustable feet.
Why Choose This Product.

Choose FN8118G when 18l oil capacity matches the heaviest peak load and one pan is the cleaner fit for the menu. Gas heating suits a properly ventilated line with the required gas service. Confirm oil volume, production rate, basket arrangement and drainage rather than choosing on width alone. Compare FNL8226G adds working capacity.
Simply Hospitality Notes

Our advice: demonstrate FN8118G with the heaviest product load and map the full oil workflow - filling, filtering, draining, cooling and disposal. Confirm extraction, fire protection, gas or electrical services, landing space and basket travel. Published output is only useful when recovery, staffing and downstream packing can keep pace.

Product Guide

Use FN8118G for sustained commercial frying where oil capacity, hourly production, recovery and basket layout are matched to the menu. Choose single pan for one product stream, twin pan for separation or flexibility, and HPO only where repeated loads justify it. Plan filtration, drainage, fire safety, extraction and landing space as part of the fryer station.

Brand Guide

About Waldorf: Waldorf 800 Series is Moffat's heavy-duty modular cookline for demanding professional kitchens. Its 800mm-deep platform spans ranges, griddles, chargrills, fryers, pasta cookers, bratt pans, induction and complementary modules, allowing a suite to be configured around menu, workflow, utilities and storage. The value lies in choosing each top, width and base as one coordinated system, backed in New Zealand by Moffat's technical, parts and service network.

Capacity, cooking system and controls

  • 400mm wide single pan fryer.
  • 18L oil capacity.
  • 25kg / hr production rate.
  • 90MJ multi-jet target burner.
  • Mechanical thermostat.
  • Easy clean stainless steel open pan.
  • V-tank with cool zone.
  • Over-temperature safety cut-out.
  • Supplied with 2 standard baskets.

Construction, safety and cleanability

  • 150mm legs in 63mm dia. heavy-duty 1.2mm 304 stainless steel with adjustable feet.

Technical specifications

ModelFN8118G
Equipment typeFryers
Overall dimensionsW 400mm x D 805mm x H 1130mm
Packed weight97kg
Packed volume0.54m³
Published capacity / output18L oil capacity
Configurationintegrated floor model

Documents

CAD & BIM files
