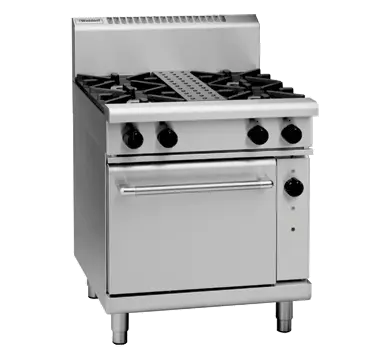

Waldorf 800 Series RN8513GC - 750mm Gas Range Convection Oven

Waldorf 800 Series RN8513GC - 750mm Gas Range Convection Oven

$11,105.71 - $11,105.71
$11,105.71
$11,105.71 - $11,105.71
$11,105.71
SKU RN8513GC-NG

Waldorf 800 Series RN8513GC - 750mm Gas Range Convection Oven is a heavy-duty gas Oven Ranges configured for multi-pan cooking with an oven or selected base beneath. Its 750mm width and integrated floor model allow it to be planned as one working module in a coordinated professional cookline.

  • 2 burner cooktop range with 300mm griddle.
  • 1/1 GN gas convection oven.
  • 2 x 28MJ/hr open burners.
  • 1 x 20MJ/hr griddle burner.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.
Why Choose This Product.

Choose RN8513GC when 2 burner cooktop range with 300mm griddle matches the pan count and the base configuration will be used throughout service. 2 burner cooktop range with 300mm griddle. The convection oven is the stronger choice for even multi-level production. Confirm fuel, oven energy, pot sizes and extraction as one package. Compare RNL8410G reduces width for a smaller simultaneous load; RNL8910GEC adds working capacity.
Simply Hospitality Notes

Our advice: confirm RN8513GC's capacity, fuel or electrical load, ventilation, clearances and final position against the real service workflow. For a modular Waldorf line, choose base type, splashback or low-back profile and adjoining modules together so storage, refrigeration, sightlines and cleaning access resolve as one system.

Product Guide

Use RN8513GC as a primary pan-cooking station. Compare the exact top arrangement, burner or zone power, oven type and base below; models sharing a width can behave very differently. Static ovens suit straightforward roasting, convection improves multi-level evenness, and refrigerated or cabinet bases change ingredient access and cleaning.

Brand Guide

About Waldorf: Waldorf 800 Series is Moffat's heavy-duty modular cookline for demanding professional kitchens. Its 800mm-deep platform spans ranges, griddles, chargrills, fryers, pasta cookers, bratt pans, induction and complementary modules, allowing a suite to be configured around menu, workflow, utilities and storage. The value lies in choosing each top, width and base as one coordinated system, backed in New Zealand by Moffat's technical, parts and service network.

Capacity, cooking system and controls

  • 2 burner cooktop range with 300mm griddle.
  • 1/1 GN gas convection oven.
  • 2 x 28MJ/hr open burners.
  • 1 x 20MJ/hr griddle burner.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.
  • Oven lining is welded and lined with vitreous enamel.

Construction, safety and cleanability

  • Heavy-duty stainless steel finish.
  • Cool touch stainless steel door handle.
  • Easy clean, installation and service.

Configuration and included equipment

  • Drop down door with welded frame.
  • Adjustable feet and 2 additional rollers.
  • Griddle on right hand side as standard.

Technical specifications

ModelRN8513GC
Equipment typeOven Ranges
Overall dimensionsW 750mm x D 805mm x H 1130mm
Packed weight239kg
Packed volume0.87m³
Published capacity / output2 burner cooktop range with 300mm griddle
Published heat input / power2 x 28MJ/hr open burners
Configurationintegrated floor model

Documents

  • Dimension W: 750mm D: 805mm H: 1130mm
  • Weight 239kg packed
