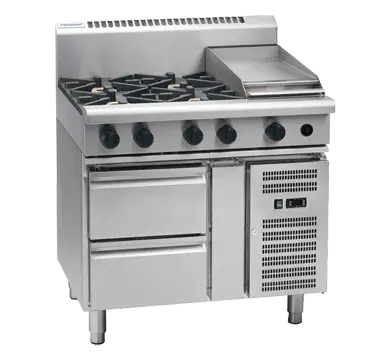

Waldorf 800 Series RN8603G-RB - 900mm Gas Cooktop Refrigerated Base

Waldorf 800 Series RN8603G-RB - 900mm Gas Cooktop Refrigerated Base

$15,291.71 - $15,291.71
$15,291.71
$15,291.71 - $15,291.71
$15,291.71
SKU RN8603G-RB-NG

Waldorf 800 Series RN8603G-RB - 900mm Gas Cooktop Refrigerated Base is a heavy-duty gas Cooktops configured for multi-pan cooking with an oven or selected base beneath. Its 900mm width and refrigerated base allow it to be planned as one working module in a coordinated professional cookline.

  • 4 burner cooktop with 300mm griddle on refrigerated base.
  • 4 x 28MJ/hr open burners.
  • 1 x 20MJ/hr griddle burner.
  • Heavy-duty stainless steel finish.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.
Why Choose This Product.

Choose RN8603G-RB when 4 burner cooktop with 300mm griddle on refrigerated base matches the pan count and the base configuration will be used throughout service. 4 burner cooktop with 300mm griddle on refrigerated base. The selected base should solve storage, refrigeration or open-access needs. Confirm fuel, oven energy, pot sizes and extraction as one package. Compare RN8809G-RB adds working capacity; RNL8910GEC keeps a similar cooking platform with a integrated floor model.
Simply Hospitality Notes

Our advice: confirm RN8603G-RB's capacity, fuel or electrical load, ventilation, clearances and final position against the real service workflow. For a modular Waldorf line, choose base type, splashback or low-back profile and adjoining modules together so storage, refrigeration, sightlines and cleaning access resolve as one system.

Product Guide

Use RN8603G-RB as a primary pan-cooking station. Compare the exact top arrangement, burner or zone power, oven type and base below; models sharing a width can behave very differently. Static ovens suit straightforward roasting, convection improves multi-level evenness, and refrigerated or cabinet bases change ingredient access and cleaning.

Brand Guide

About Waldorf: Waldorf 800 Series is Moffat's heavy-duty modular cookline for demanding professional kitchens. Its 800mm-deep platform spans ranges, griddles, chargrills, fryers, pasta cookers, bratt pans, induction and complementary modules, allowing a suite to be configured around menu, workflow, utilities and storage. The value lies in choosing each top, width and base as one coordinated system, backed in New Zealand by Moffat's technical, parts and service network.

Capacity, cooking system and controls

  • 4 burner cooktop with 300mm griddle on refrigerated base.
  • 4 x 28MJ/hr open burners.
  • 1 x 20MJ/hr griddle burner.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.

Construction, safety and cleanability

  • Heavy-duty stainless steel finish.
  • Easy clean, installation and service.

Configuration and included equipment

  • Adjustable feet and 2 additional rollers.
  • Griddle on right hand side as standard.

Technical specifications

ModelRN8603G-RB
Equipment typeCooktops
Overall dimensionsW 900mm x D 805mm x H 1130mm
Packed weight245kg
Packed volume1.03m³
Published capacity / output4 burner cooktop with 300mm griddle on refrigerated base
Published heat input / power4 x 28MJ/hr open burners
Configurationrefrigerated base

Documents

  • Dimension W: 900mm D: 805mm H: 1130mm
  • Weight 245kg packed
