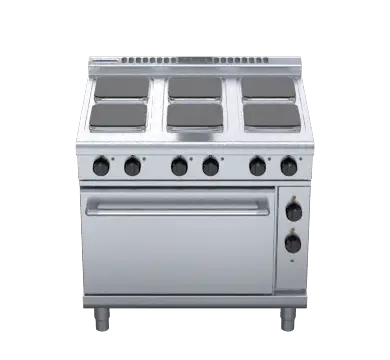

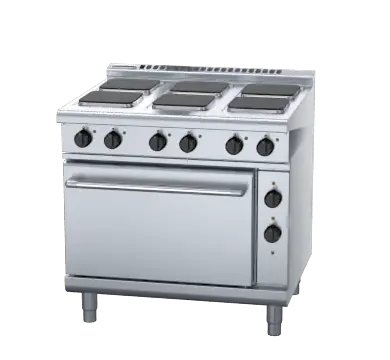

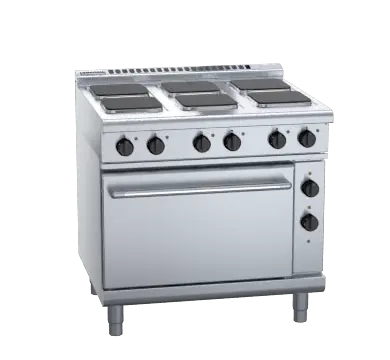

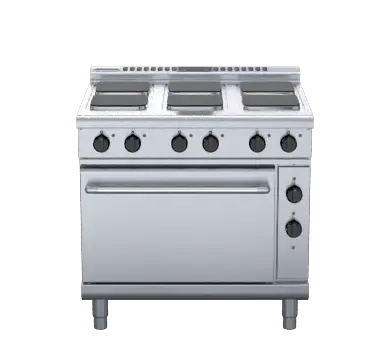

Waldorf 800 Series RNL8610SEC - 900mm Electric Range Convection Oven Low Back Version

Waldorf 800 Series RNL8610SEC - 900mm Electric Range Convection Oven Low Back Version

$13,754.00 - $13,754.00
$13,754.00
$13,754.00 - $13,754.00
$13,754.00
SKU RNL8610SEC

Waldorf 800 Series RNL8610SEC - 900mm Electric Range Convection Oven Low Back Version is a heavy-duty electric Oven Ranges configured for multi-pan cooking with an oven or selected base beneath. Its 900mm width and integrated floor model with a low-back profile allow it to be planned as one working module in a coordinated professional cookline.

  • 6 cooking zone electric cooktops on convection oven.
  • 2/1 GN electric convection oven.
  • 6 x 2.6kW cast iron hot plate elements with thermal protection.
  • 4.5kW bottom heat element and 2.0kW top heat element with 100W oven fan motor.
  • Cast iron hot plate elements with 6 heat position switch.
  • GN 2/1 drawers with 4 position racking.
  • Vitreous enamelled control panel.
Why Choose This Product.

Choose RNL8610SEC when 6 cooking zone electric cooktops on convection oven matches the pan count and the base configuration will be used throughout service. 6 cooking zone electric cooktops on convection oven. The convection oven is the stronger choice for even multi-level production. Confirm fuel, oven energy, pot sizes and extraction as one package. Compare RNL8600SE-CB keeps a similar cooking platform with a cabinet base.
Simply Hospitality Notes

Our advice: confirm RNL8610SEC's capacity, fuel or electrical load, ventilation, clearances and final position against the real service workflow. For a modular Waldorf line, choose base type, splashback or low-back profile and adjoining modules together so storage, refrigeration, sightlines and cleaning access resolve as one system.

Product Guide

Use RNL8610SEC as a primary pan-cooking station. Compare the exact top arrangement, burner or zone power, oven type and base below; models sharing a width can behave very differently. Static ovens suit straightforward roasting, convection improves multi-level evenness, and refrigerated or cabinet bases change ingredient access and cleaning.

Brand Guide

About Waldorf: Waldorf 800 Series is Moffat's heavy-duty modular cookline for demanding professional kitchens. Its 800mm-deep platform spans ranges, griddles, chargrills, fryers, pasta cookers, bratt pans, induction and complementary modules, allowing a suite to be configured around menu, workflow, utilities and storage. The value lies in choosing each top, width and base as one coordinated system, backed in New Zealand by Moffat's technical, parts and service network.

Capacity, cooking system and controls

  • 6 cooking zone electric cooktops on convection oven.

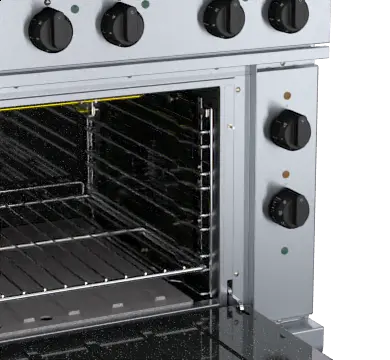

  • 2/1 GN electric convection oven.
  • 6 x 2.6kW cast iron hot plate elements with thermal protection.
  • 4.5kW bottom heat element and 2.0kW top heat element with 100W oven fan motor.
  • Cast iron hot plate elements with 6 heat position switch.
  • Fully welded and vitreous enamelled oven liner.
  • 50-320C thermostatic control.
  • Vitreous enamelled control panel.
  • Large easy use control knob for cooktop - heat resistant reinforced.
  • Power indicator light for each element control.

Construction, safety and cleanability

  • Heavy-duty stainless steel finish.
  • Easy clean, installation and service.

Configuration and included equipment

  • GN 2/1 drawers with 4 position racking.

Additional details

  • Aluminised steel internal construction.

Technical specifications

ModelRNL8610SEC
Equipment typeOven Ranges
Overall dimensionsW 900mm x D 805mm x H 970mm
Packed weight263kg
Packed volume1.03m³
Published capacity / output6 cooking zone electric cooktops on convection oven
Published heat input / power6 x 2.6kW cast iron hot plate elements with thermal protection
Cooking surface / construction6 x 2.6kW cast iron hot plate elements with thermal protection
Configurationintegrated floor model, low-back profile

Documents

  • Dimension W: 900mm D: 805mm H: 970mm
  • Weight 263kg packed
