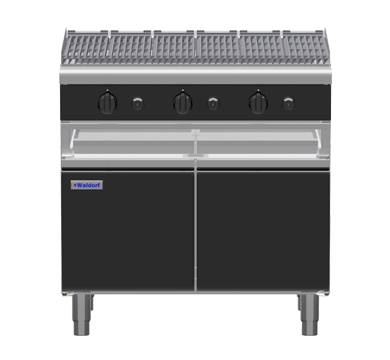

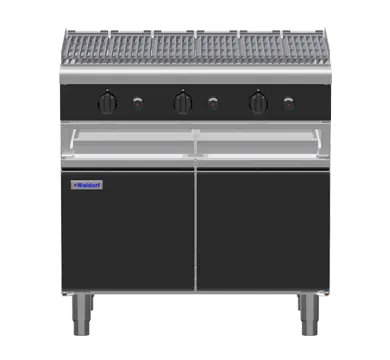

Waldorf Bold CHLB8900G-CD - 900mm Gas Chargrill Low Back Version - Cabinet Base

Waldorf Bold CHLB8900G-CD - 900mm Gas Chargrill Low Back Version - Cabinet Base

$13,070.57 - $13,070.57
$13,070.57
$13,070.57 - $13,070.57
$13,070.57
SKU CHLB8900G-CD-NG

Waldorf Bold CHLB8900G-CD - 900mm Gas Chargrill Low Back Version - Cabinet Base is a heavy-duty gas Chargrills / Barbecues configured for high-output grilling with rendered flavour and defined grill marks. Its 900mm width and cabinet base with doors with a low-back profile allow it to be planned as one working module in a coordinated professional cookline.

  • 3 x 33MJ/hr stainless steel burners.
  • Reversible heavy-duty top grates.
  • Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel.
  • Full pilot and flame failure protection per burner.
  • Lift out radiants, burners and grease tray baffles.
  • Heavy-duty, heat resistant reinforced control knobs.
  • Easy clean, installation and service.
Why Choose This Product.

Choose CHLB8900G-CD when a 900mm grill in cabinet base with doors matches the peak number of proteins and genuine chargrilled flavour is central to the menu. 3 x 33MJ/hr stainless steel burners. and reversible grates support zone management, while removable radiants, baffles and grease collection matter every day. Size extraction for the actual load, not only the appliance connection. Compare CHLB8600G-CD reduces width for a smaller simultaneous load; CHLB8120G-CD adds working capacity. Its low-back profile also preserves sightlines across an island or open pass. Specify the finish across adjoining Bold modules as one design decision.
Simply Hospitality Notes

Our advice: map CHLB8900G-CD's usable cooking zones to the peak menu and confirm extraction from the actual grease, smoke and heat load. Check utensil reach, raw-to-cooked separation, grease or ash removal, landing space and daily clean-down access before finalising width and base configuration.

Product Guide

Use CHLB8900G-CD for high-output grilling with rendered flavour and defined grill marks. Compare usable surface width, independent zones, heat source, plate or grate construction and the base below. Gas chargrills emphasise controllable grill flavour, griddles provide a flexible flat surface, and solid fuel adds theatre and flavour with greater ventilation and labour demands.

Brand Guide

About Waldorf Bold: Waldorf Bold applies a more architectural finish to the performance platform of Waldorf 800 Series. Black, burgundy or chilli-red vitreous-enamel front panels and low-back options give open kitchens greater control of colour and sightlines while retaining the same heavy-duty cooking specifications. Choose Bold when the cookline is part of the guest experience as well as a production system, with New Zealand technical, parts and service support provided by Moffat.

Capacity, cooking system and controls

  • 3 x 33MJ/hr stainless steel burners.
  • Full pilot and flame failure protection per burner.
  • Lift out radiants, burners and grease tray baffles.
  • Heavy-duty, heat resistant reinforced control knobs.

Construction, safety and cleanability

  • Reversible heavy-duty top grates.
  • Inclined position incorporates flare reducing grate fin design with grooves to run grease into front collection channel.
  • Easy clean, installation and service.

Configuration and included equipment

  • 900mm gas chargrill on cabinet base.

Additional details

  • Waldorf Bold option.
  • Default colour is black and other colour options are available.

Technical specifications

ModelCHLB8900G-CD
Equipment typeChargrills / Barbecues
Overall dimensionsW 900mm x D 805mm x H 1130mm
Packed weight253kg
Packed volume1.03m³
Published heat input / power3 x 33MJ/hr stainless steel burners
Cooking surface / constructionReversible heavy-duty top grates
Configurationcabinet base with doors, low-back profile

Documents

CAD & BIM files

  • Dimension W: 900mm D: 805mm H: 1130mm
  • Weight 253kg packed
