Waldorf Bold RNB8603G-CD - 900mm Gas Cooktop - Cabinet Base

Waldorf 4 Burner Gas Cooktop RNB8603G-CD - 900mm Cabinet Base

$10,691.00 - $10,691.00
$10,691.00
$10,691.00 - $10,691.00
$10,691.00
SKU RNB8603G-CD-NG

Waldorf Bold RNB8603G-CD - 900mm Gas Cooktop - Cabinet Base is a heavy-duty gas Cooktops configured for multi-pan cooking with an oven or selected base beneath. Its 900mm width and cabinet base with doors allow it to be planned as one working module in a coordinated professional cookline.

  • 4 burner cooktop with 300mm griddle on cabinet base.
  • 4 x 28MJ/hr open burners.
  • 1 x 20MJ/hr griddle burner.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.

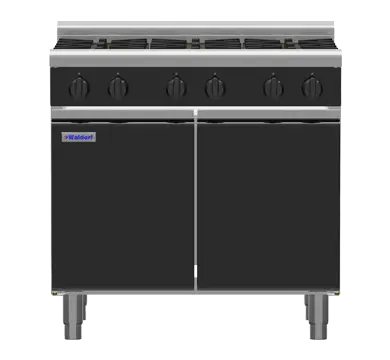

  • Image shown as RNLB8600G-CD (same width/depth & base configuration, different burner/griddle configuration - model selected contains 4 open burners & a 300mm griddle configuration).
Why Choose This Product.

Choose RNB8603G-CD when 4 burner cooktop with 300mm griddle on cabinet base matches the pan count and the base configuration will be used throughout service. 4 burner cooktop with 300mm griddle on cabinet base. The selected base should solve storage, refrigeration or open-access needs. Confirm fuel, oven energy, pot sizes and extraction as one package. Compare RNLB8400G-CD reduces width for a smaller simultaneous load; RNLB8910GEC keeps a similar cooking platform with a integrated floor model. Its vitreous-enamel frontage gives a visible cookline a more deliberate architectural finish. Specify the finish across adjoining Bold modules as one design decision.
Simply Hospitality Notes

Our advice: confirm RNB8603G-CD's capacity, fuel or electrical load, ventilation, clearances and final position against the real service workflow. For a modular Waldorf line, choose base type, splashback or low-back profile and adjoining modules together so storage, refrigeration, sightlines and cleaning access resolve as one system.

Product Guide

Use RNB8603G-CD as a primary pan-cooking station. Compare the exact top arrangement, burner or zone power, oven type and base below; models sharing a width can behave very differently. Static ovens suit straightforward roasting, convection improves multi-level evenness, and refrigerated or cabinet bases change ingredient access and cleaning.

Brand Guide

About Waldorf Bold: Waldorf Bold applies a more architectural finish to the performance platform of Waldorf 800 Series. Black, burgundy or chilli-red vitreous-enamel front panels and low-back options give open kitchens greater control of colour and sightlines while retaining the same heavy-duty cooking specifications. Choose Bold when the cookline is part of the guest experience as well as a production system, with New Zealand technical, parts and service support provided by Moffat.

Capacity, cooking system and controls

  • 4 burner cooktop with 300mm griddle on cabinet base.
  • 4 x 28MJ/hr open burners.
  • 1 x 20MJ/hr griddle burner.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.

Construction, safety and cleanability

  • Heavy-duty stainless steel finish.
  • Easy clean, installation and service.

Configuration and included equipment

  • Adjustable feet and 2 additional rollers.
  • Griddle on right hand side as standard.

Additional details

  • Waldorf Bold option.
  • Default colour is black and other colour options are available.

Technical specifications

ModelRNB8603G-CD
Equipment typeCooktops
Overall dimensionsW 900mm x D 805mm x H 1130mm
Packed weight245kg
Packed volume1.03m³
Published capacity / output4 burner cooktop with 300mm griddle on cabinet base
Published heat input / power4 x 28MJ/hr open burners
Configurationcabinet base with doors

Documents

CAD & BIM files

  • Dimension W: 900mm D: 805mm H: 1130mm
  • Weight 245kg packed
