Waldorf Bold RNB8616EC - 900mm Electric Range Convection Oven

Waldorf Bold RNB8616EC - 900mm Electric Range Convection Oven

$14,608.29 - $14,608.29
$14,608.29
$14,608.29 - $14,608.29
$14,608.29
SKU RNB8616EC

Waldorf Bold RNB8616EC - 900mm Electric Range Convection Oven is a heavy-duty electric Oven Ranges configured for multi-pan cooking with an oven or selected base beneath. Its 900mm width and integrated floor model allow it to be planned as one working module in a coordinated professional cookline.

  • 2/1 GN electric convection oven.
  • 2 x 2.4kW open radiant elements.
  • 2 x 3.6kW griddle elements.
  • Six temperature setting simmer setting.
  • Heavy-duty reinforced control knobs.
  • Optional hot plate elements.

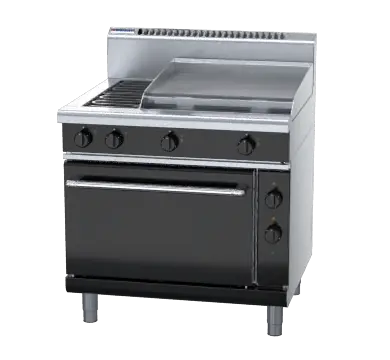

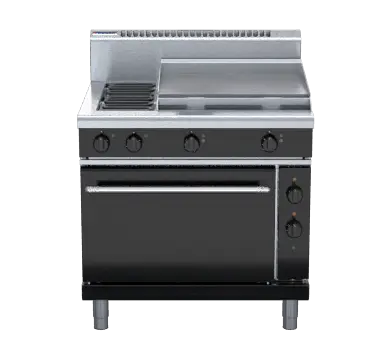

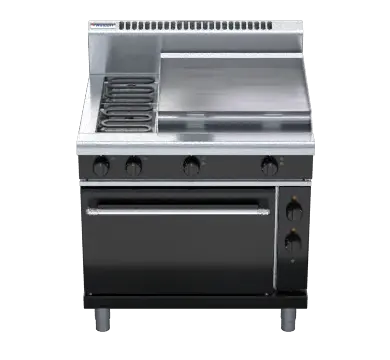

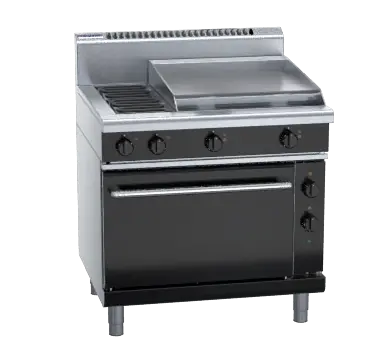

  • Image Shown as RN8610EC (same width/depth & base configuration, different burner/griddle configuration - model selected contains 2 radiant burners & a 600mm griddle configuration).
Why Choose This Product.

Choose RNB8616EC when 2 radiant element cooktop range with 600mm griddle matches the pan count and the base configuration will be used throughout service. 2/1 GN electric convection oven. The convection oven is the stronger choice for even multi-level production. Confirm fuel, oven energy, pot sizes and extraction as one package. Compare RNLB8600SE-CD keeps a similar cooking platform with a cabinet base with doors. Its vitreous-enamel frontage gives a visible cookline a more deliberate architectural finish. Specify the finish across adjoining Bold modules as one design decision.
Simply Hospitality Notes

Our advice: confirm RNB8616EC's capacity, fuel or electrical load, ventilation, clearances and final position against the real service workflow. For a modular Waldorf line, choose base type, splashback or low-back profile and adjoining modules together so storage, refrigeration, sightlines and cleaning access resolve as one system.

Product Guide

Use RNB8616EC as a primary pan-cooking station. Compare the exact top arrangement, burner or zone power, oven type and base below; models sharing a width can behave very differently. Static ovens suit straightforward roasting, convection improves multi-level evenness, and refrigerated or cabinet bases change ingredient access and cleaning.

Brand Guide

About Waldorf Bold: Waldorf Bold applies a more architectural finish to the performance platform of Waldorf 800 Series. Black, burgundy or chilli-red vitreous-enamel front panels and low-back options give open kitchens greater control of colour and sightlines while retaining the same heavy-duty cooking specifications. Choose Bold when the cookline is part of the guest experience as well as a production system, with New Zealand technical, parts and service support provided by Moffat.

Capacity, cooking system and controls

  • 2 radiant element cooktop range with 600mm griddle.

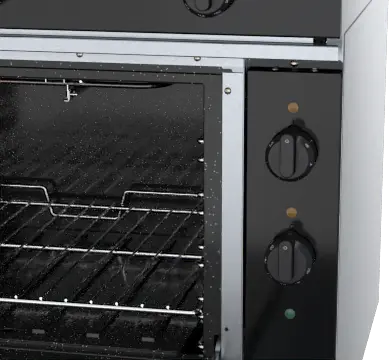

  • 2/1 GN electric convection oven.
  • 2 x 2.4kW open radiant elements.
  • 2 x 3.6kW griddle elements.
  • Six temperature setting simmer setting.
  • Heavy-duty reinforced control knobs.
  • Oven lining is welded and lined with vitreous enamel.
  • Optional hot plate elements.

Construction, safety and cleanability

  • Heavy-duty stainless steel finish.
  • Cool touch stainless steel door handle.
  • Easy clean, installation and service.

Configuration and included equipment

  • Drop down door with welded frame.
  • Adjustable feet and 2 additional rollers.
  • Griddle on right hand side as standard.

Additional details

  • Waldorf Bold option.
  • Default colour is black and other colour options are available.

Technical specifications

ModelRNB8616EC
Equipment typeOven Ranges
Overall dimensionsW 900mm x D 805mm x H 1130mm
Packed weight263kg
Packed volume1.03m³
Published capacity / output2/1 GN electric convection oven
Published heat input / power2 x 2.4kW open radiant elements
Cooking surface / constructionOptional hot plate elements
Configurationintegrated floor model

Documents

CAD & BIM files

  • Dimension W: 900mm D: 805mm H: 1130mm
  • Weight 263kg packed
