Waldorf Bold RNB8813GC - 1200mm Gas Range Convection Oven

Waldorf 6 Burner Gas Range RNB8813GC - 1200mm Convection Oven

$17,384.00 - $17,384.00
$17,384.00
$17,384.00 - $17,384.00
$17,384.00
SKU RNB8813GC-NG

Waldorf Bold RNB8813GC - 1200mm Gas Range Convection Oven is a heavy-duty gas Oven Ranges configured for multi-pan cooking with an oven or selected base beneath. Its 1200mm width and integrated floor model allow it to be planned as one working module in a coordinated professional cookline.

  • 6 burner cooktop range with 300mm griddle.
  • 2/1 GN gas convection oven.
  • 6 x 28MJ/hr open burners.
  • 1 x 20MJ/hr griddle burner.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.

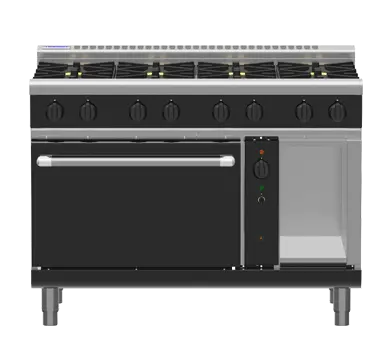

  • Image shown as RNLB8810GC (same width/depth & base configuration, different burner/griddle configuration - model selected contains 6 burners & a 300mm griddle configuration).
Why Choose This Product.

Choose RNB8813GC when 6 burner cooktop range with 300mm griddle matches the pan count and the base configuration will be used throughout service. 6 burner cooktop range with 300mm griddle. The convection oven is the stronger choice for even multi-level production. Confirm fuel, oven energy, pot sizes and extraction as one package. Compare RNLB8910GEC reduces width for a smaller simultaneous load. Its vitreous-enamel frontage gives a visible cookline a more deliberate architectural finish. Specify the finish across adjoining Bold modules as one design decision.
Simply Hospitality Notes

Our advice: confirm RNB8813GC's capacity, fuel or electrical load, ventilation, clearances and final position against the real service workflow. For a modular Waldorf line, choose base type, splashback or low-back profile and adjoining modules together so storage, refrigeration, sightlines and cleaning access resolve as one system.

Product Guide

Use RNB8813GC as a primary pan-cooking station. Compare the exact top arrangement, burner or zone power, oven type and base below; models sharing a width can behave very differently. Static ovens suit straightforward roasting, convection improves multi-level evenness, and refrigerated or cabinet bases change ingredient access and cleaning.

Brand Guide

About Waldorf Bold: Waldorf Bold applies a more architectural finish to the performance platform of Waldorf 800 Series. Black, burgundy or chilli-red vitreous-enamel front panels and low-back options give open kitchens greater control of colour and sightlines while retaining the same heavy-duty cooking specifications. Choose Bold when the cookline is part of the guest experience as well as a production system, with New Zealand technical, parts and service support provided by Moffat.

Capacity, cooking system and controls

  • 6 burner cooktop range with 300mm griddle.
  • 2/1 GN gas convection oven.
  • 6 x 28MJ/hr open burners.
  • 1 x 20MJ/hr griddle burner.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.
  • Oven lining is welded and lined with vitreous enamel.

Construction, safety and cleanability

  • Heavy-duty stainless steel finish.
  • Cool touch stainless steel door handle.
  • Easy clean, installation and service.

Configuration and included equipment

  • Storage cabinet on right hand side.
  • Drop down door with welded frame.
  • Adjustable feet and 2 additional rollers.
  • Griddle on right hand side as standard.

Additional details

  • Waldorf Bold option.
  • Default colour is black and other colour options are available.

Technical specifications

ModelRNB8813GC
Equipment typeOven Ranges
Overall dimensionsW 1200mm x D 805mm x H 1130mm
Packed weight345kg
Packed volume1.36mΒ³
Published capacity / output6 burner cooktop range with 300mm griddle
Published heat input / power6 x 28MJ/hr open burners
Configurationintegrated floor model

Documents

CAD & BIM files

  • Dimension W: 1200mm D: 805mm H: 1130mm
  • Weight 345kg packed
