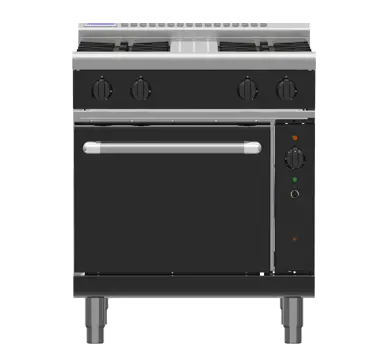

Waldorf Bold RNLB8510GC - 750mm Gas Range Convection Oven Low Back Version

Waldorf 4 Burner Gas Range RNLB8510GC - 750mm Convection Oven Low Back Version

$12,256.00 - $12,256.00
$12,256.00
$12,256.00 - $12,256.00
$12,256.00
SKU RNLB8510GC-NG

Waldorf Bold RNLB8510GC - 750mm Gas Range Convection Oven Low Back Version is a heavy-duty gas Oven Ranges configured for multi-pan cooking with an oven or selected base beneath. Its 750mm width and integrated floor model with a low-back profile allow it to be planned as one working module in a coordinated professional cookline.

  • 4 burner cooktop range.
  • 1/1 GN gas convection oven.
  • 4 x 28MJ/hr open burners.
  • Heavy-duty stainless steel finish.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.
Why Choose This Product.

Choose RNLB8510GC when 4 burner cooktop range matches the pan count and the base configuration will be used throughout service. 4 burner cooktop range. The convection oven is the stronger choice for even multi-level production. Confirm fuel, oven energy, pot sizes and extraction as one package. Compare RNLB8410G reduces width for a smaller simultaneous load; RNLB8910GEC adds working capacity. Its low-back profile also preserves sightlines across an island or open pass. Specify the finish across adjoining Bold modules as one design decision.
Simply Hospitality Notes

Our advice: confirm RNLB8510GC's capacity, fuel or electrical load, ventilation, clearances and final position against the real service workflow. For a modular Waldorf line, choose base type, splashback or low-back profile and adjoining modules together so storage, refrigeration, sightlines and cleaning access resolve as one system.

Product Guide

Use RNLB8510GC as a primary pan-cooking station. Compare the exact top arrangement, burner or zone power, oven type and base below; models sharing a width can behave very differently. Static ovens suit straightforward roasting, convection improves multi-level evenness, and refrigerated or cabinet bases change ingredient access and cleaning.

Brand Guide

About Waldorf Bold: Waldorf Bold applies a more architectural finish to the performance platform of Waldorf 800 Series. Black, burgundy or chilli-red vitreous-enamel front panels and low-back options give open kitchens greater control of colour and sightlines while retaining the same heavy-duty cooking specifications. Choose Bold when the cookline is part of the guest experience as well as a production system, with New Zealand technical, parts and service support provided by Moffat.

Capacity, cooking system and controls

  • 4 burner cooktop range.
  • 1/1 GN gas convection oven.
  • 4 x 28MJ/hr open burners.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.
  • Oven lining is welded and lined with vitreous enamel.

Construction, safety and cleanability

  • Heavy-duty stainless steel finish.
  • Cool touch stainless steel door handle.
  • Easy clean, installation and service.

Configuration and included equipment

  • Drop down door with welded frame.
  • Adjustable feet and 2 additional rollers.

Additional details

  • Waldorf Bold option.
  • Default colour is black and other colour options are available.

Technical specifications

ModelRNLB8510GC
Equipment typeOven Ranges
Overall dimensionsW 750mm x D 805mm x H 972mm
Packed weight239kg
Packed volume0.87mΒ³
Published capacity / output4 burner cooktop range
Published heat input / power4 x 28MJ/hr open burners
Configurationintegrated floor model, low-back profile

Documents

CAD & BIM files

  • Dimension W: 750mm D: 805mm H: 972mm
  • Weight 239kg packed
