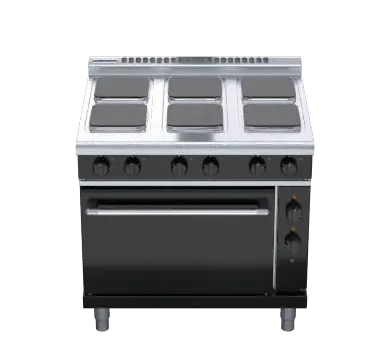

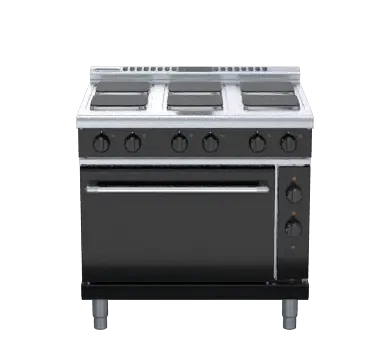

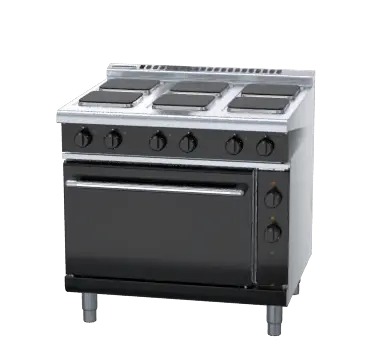

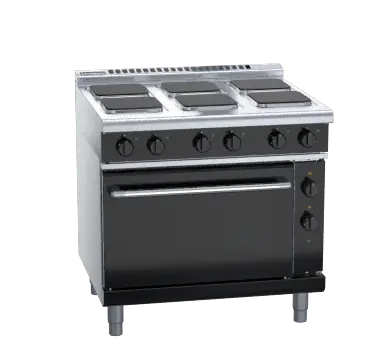

Waldorf Bold RNLB8610SEC - 900mm Electric Sealed Hobs Range Convection Oven Low Back Version

Waldorf 6 Zone Electric Cooktop RNLB8610SEC - 900mm Electric Sealed Hobs Range Convection Oven Low Back Version

$14,690.00 - $14,690.00
$14,690.00
$14,690.00 - $14,690.00
$14,690.00
SKU RNLB8610SEC

Waldorf Bold RNLB8610SEC - 900mm Electric Sealed Hobs Range Convection Oven Low Back Version is a heavy-duty electric Sealed Hobs Oven Ranges configured for multi-pan cooking with an oven or selected base beneath. Its 900mm width and integrated floor model with a low-back profile allow it to be planned as one working module in a coordinated professional cookline.

  • 6 cooking zone electric cooktops on convection oven.

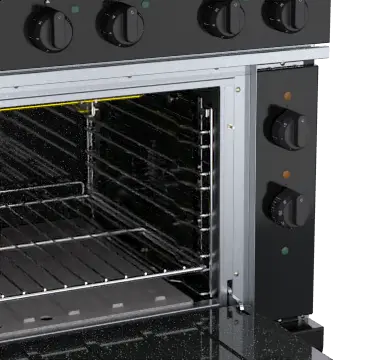

  • 2/1 GN electric convection oven.
  • 6 x 2.6kW cast iron hot plate elements with thermal protection.
  • 4.5kW bottom heat element and 2.0kW top heat element with 100W oven fan motor.
  • Cast iron hot plate elements with 6 heat position switch.
  • GN 2/1 drawers with 4 position racking.
  • Vitreous enamelled control panel.
Why Choose This Product.

Choose RNLB8610SEC when 6 cooking zone electric cooktops on convection oven matches the pan count and the base configuration will be used throughout service. 6 cooking zone electric cooktops on convection oven. The convection oven is the stronger choice for even multi-level production. Confirm fuel, oven energy, pot sizes and extraction as one package. Compare RNLB8600SE-CD keeps a similar cooking platform with a cabinet base with doors. Its low-back profile also preserves sightlines across an island or open pass. Specify the finish across adjoining Bold modules as one design decision.
Simply Hospitality Notes

Our advice: confirm RNLB8610SEC's capacity, fuel or electrical load, ventilation, clearances and final position against the real service workflow. For a modular Waldorf line, choose base type, splashback or low-back profile and adjoining modules together so storage, refrigeration, sightlines and cleaning access resolve as one system.

Product Guide

Use RNLB8610SEC as a primary pan-cooking station. Compare the exact top arrangement, burner or zone power, oven type and base below; models sharing a width can behave very differently. Static ovens suit straightforward roasting, convection improves multi-level evenness, and refrigerated or cabinet bases change ingredient access and cleaning.

Brand Guide

About Waldorf Bold: Waldorf Bold applies a more architectural finish to the performance platform of Waldorf 800 Series. Black, burgundy or chilli-red vitreous-enamel front panels and low-back options give open kitchens greater control of colour and sightlines while retaining the same heavy-duty cooking specifications. Choose Bold when the cookline is part of the guest experience as well as a production system, with New Zealand technical, parts and service support provided by Moffat.

Capacity, cooking system and controls

  • 6 cooking zone electric cooktops on convection oven.
  • 2/1 GN electric convection oven.
  • 6 x 2.6kW cast iron hot plate elements with thermal protection.
  • 4.5kW bottom heat element and 2.0kW top heat element with 100W oven fan motor.
  • Cast iron hot plate elements with 6 heat position switch.
  • Fully welded and vitreous enamelled oven liner.
  • 50-320C thermostatic control.
  • Vitreous enamelled control panel.
  • Large easy use control knob for cooktop - heat resistant reinforced.
  • Power indicator light for each element control.

Construction, safety and cleanability

  • Heavy-duty stainless steel finish.
  • Easy clean, installation and service.

Configuration and included equipment

  • GN 2/1 drawers with 4 position racking.

Additional details

  • Aluminised steel internal construction.

Technical specifications

ModelRNLB8610SEC
Equipment typeSealed Hobs Oven Ranges
Overall dimensionsW 900mm x D 805mm x H 970mm
Packed weight210kg
Packed volume0.7m³
Published capacity / output6 cooking zone electric cooktops on convection oven
Published heat input / power6 x 2.6kW cast iron hot plate elements with thermal protection
Cooking surface / construction6 x 2.6kW cast iron hot plate elements with thermal protection
Configurationintegrated floor model, low-back profile

Documents

CAD & BIM files

  • Dimension W: 900mm D: 805mm H: 970mm
  • Weight 210kg packed
