Waldorf Bold RNLB8816G - 1200mm Gas Range Static Oven Low Back Version

Original price $13,839.43 - Original price $13,839.43
Original price
$13,839.43
$13,839.43 - $13,839.43
Current price $13,839.43
SKU RNLB8816G-NG

Waldorf Bold RNLB8816G - 1200mm Gas Range Static Oven Low Back Version is a heavy-duty gas Oven Ranges configured for multi-pan cooking with an oven or selected base beneath. Its 1200mm width and integrated floor model with a low-back profile allow it to be planned as one working module in a coordinated professional cookline.

  • 4 burner cooktop range with 600mm griddle.
  • 2/1 GN gas static oven.
  • 4 x 28MJ/hr open burners.
  • 2 x 20MJ/hr griddle burners.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.

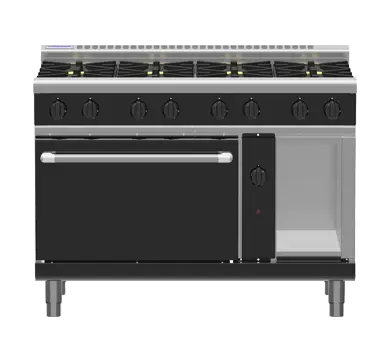

  • Image shown as RNLB8810G (same width/depth & base configuration, different burner/griddle configuration - model selected contains 4 burners & a 600mm griddle configuration).
Why Choose This Product.

Choose RNLB8816G when 4 burner cooktop range with 600mm griddle matches the pan count and the base configuration will be used throughout service. 4 burner cooktop range with 600mm griddle. The static oven suits robust roasting and straightforward pan work. Confirm fuel, oven energy, pot sizes and extraction as one package. Compare RNLB8910GEC reduces width for a smaller simultaneous load. Its low-back profile also preserves sightlines across an island or open pass. Specify the finish across adjoining Bold modules as one design decision.

Simply Hospitality Notes

Our advice: confirm RNLB8816G's capacity, fuel or electrical load, ventilation, clearances and final position against the real service workflow. For a modular Waldorf line, choose base type, splashback or low-back profile and adjoining modules together so storage, refrigeration, sightlines and cleaning access resolve as one system.

Product Guide

Use RNLB8816G as a primary pan-cooking station. Compare the exact top arrangement, burner or zone power, oven type and base below; models sharing a width can behave very differently. Static ovens suit straightforward roasting, convection improves multi-level evenness, and refrigerated or cabinet bases change ingredient access and cleaning.

Brand Guide

About Waldorf Bold: Waldorf Bold applies a more architectural finish to the performance platform of Waldorf 800 Series. Black, burgundy or chilli-red vitreous-enamel front panels and low-back options give open kitchens greater control of colour and sightlines while retaining the same heavy-duty cooking specifications. Choose Bold when the cookline is part of the guest experience as well as a production system, with New Zealand technical, parts and service support provided by Moffat.

Capacity, cooking system and controls

  • 4 burner cooktop range with 600mm griddle.
  • 2/1 GN gas static oven.
  • 4 x 28MJ/hr open burners.
  • 2 x 20MJ/hr griddle burners.
  • Flame failure protection on all burners.
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands.
  • Heavy-duty reinforced control knobs.
  • Oven lining is welded and lined with vitreous enamel.

Construction, safety and cleanability

  • Heavy-duty stainless steel finish.
  • Cool touch stainless steel door handle.
  • Easy clean, installation and service.

Configuration and included equipment

  • Storage cabinet on right hand side.
  • Drop down door with welded frame.
  • Adjustable feet and 2 additional rollers.
  • Griddle on right hand side as standard.

Additional details

  • Waldorf Bold option.
  • Default colour is black and other colour options are available.

Technical specifications

ModelRNLB8816G
Equipment typeOven Ranges
Overall dimensionsW 1200mm x D 805mm x H 972mm
Packed weight339kg
Packed volume1.36m³
Published capacity / output4 burner cooktop range with 600mm griddle
Published heat input / power4 x 28MJ/hr open burners
Configurationintegrated floor model, low-back profile

Documents

CAD & BIM files

  • Dimension W: 1200mm D: 805mm H: 972mm
  • Weight 339kg packed
