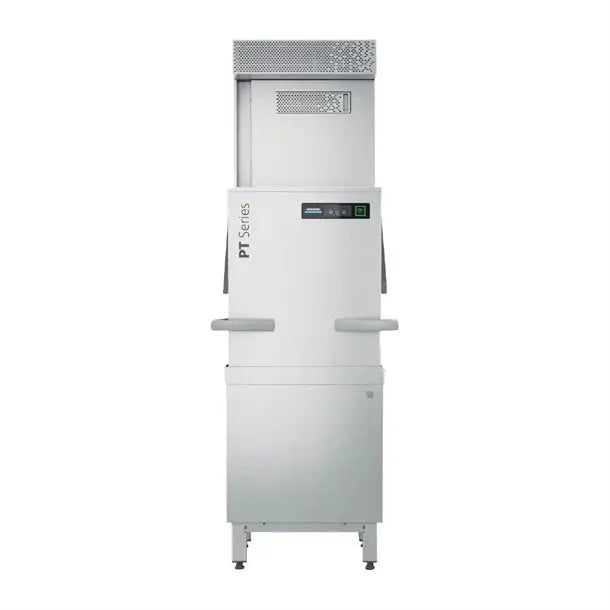

Winterhalter PT Series Energy Pass Through DishwasherΒ  Passthrough Dishwasher

Winterhalter PT Energy Pass-Through Dishwashers

$28,515.00 - $33,998.00
$28,515.00
$28,515.00 - $33,998.00
$28,515.00
SKU 517V0065

A pass-through dishwasher with exhaust-air heat recovery for high-volume kitchens that need fast rack flow while reducing the steam and heat released each time the hood opens.

  • Exhaust-air heat recovery reduces steam release into the wash area
  • Smart touch display and S-shaped wash fields
  • VarioPower adjustable wash pressure
  • Quadruple filtration with clouding sensor
  • EnergyLight wastewater heat recovery
  • Connected Wash and automatic start/close timer

Why Choose This Product

Choose PT Energy when the warewasher performs well but the room climate is the problem. Recovering heat from the exhaust air reduces the steam plume at the hood and preheats cold inlet water, improving operator comfort and lowering the load placed on ventilation without giving up the PT platform’s rack flow and wash control.


Dimensions 635w x 750d x 2225h
Rack Dimension 500 x 500
Clear Entry Height 440
Rinse Water Consumption 2.2L Per Cycle

Dimensions 735w x 750d x 2225h
Rack Dimension 500 x 500
Clear Entry Height 440
Rinse Water Consumption 2.2L Per C ycle

Dimensions 735w x 750d x 2465h
Rack Dimension 500 x 600
Clear Entry Height 560
Rinse Water Consumption 2.2L Per C ycle
Simply Hospitality Notes

Specify this range where steam, heat gain or ventilation demand has a real operational cost. The heat-recovery section increases machine height and requires a cold-water supply, so coordinate ceiling clearance, services and tabling early. Do not choose PT-XL unless the venue genuinely needs its 500 x 600mm rack and taller entry.

Product Guide

Choose PT-M Energy for the most compact 500mm-rack heat-recovery line, PT-L Energy for a wider 500mm-rack working zone, and PT-XL Energy for oversized ware. Compare standard PT where room climate is already well controlled; compare PT Energy Utensil where mixed dish and utensil loads are central to the operation.

Brand Guide

About Winterhalter: Winterhalter specialises in professional warewashing as a complete system: the machine, water treatment, chemicals and rack are selected to work together. Its UC undercounter, PT pass-through and UF utensil platforms are engineered for dependable wash quality, hygiene control and operating efficiency, with features such as VarioPower pressure adjustment, multi-stage filtration, connected monitoring and heat recovery applied according to the workload.

Operational Fit

The Energy models use cold inlet water and are taller than their standard PT counterparts to house heat recovery. PT-M and PT-L accept 500 x 500mm racks with a 440mm opening; PT-XL accepts 500 x 600mm racks with a 560mm opening. Allow the full stated height and service access before confirming the room layout.

Model Selection & Technical Specifications

PT-M Energy

  • Dimensions (W x D x H): 635 x 750 x 2225mm
  • Rack: 500 x 500mm
  • Clear entry: 440mm
  • Rinse water: 2.2L per cycle
  • Water connection: G3/4; 4L/min; minimum 1.5 bar; maximum 20Β°C inlet; 23.6mm wastewater connection
  • Electrical: 415V three phase, 20A, 9.7kW standard; 25A / 11.5kW or 32A / 15.7kW optional
  • Cycle times: 80 / 110 / 140 seconds
  • Tank / noise: 35L / 62dB(A)
  • Weight: 156 / 175kg net / gross

PT-L Energy

  • Dimensions (W x D x H): 735 x 750 x 2225mm
  • Rack: 500 x 500mm
  • Clear entry: 440mm
  • Rinse water: 2.2L per cycle
  • Water connection: G3/4; 4L/min; minimum 1.5 bar; maximum 20Β°C inlet; 23.6mm wastewater connection
  • Electrical: 415V three phase, 20A, 9.7kW standard; 25A / 11.5kW or 32A / 15.7kW optional
  • Cycle times: 80 / 110 / 140 seconds
  • Tank / noise: 35L / 62dB(A)
  • Weight: 163 / 187kg net / gross

PT-XL Energy

  • Dimensions (W x D x H): 735 x 750 x 2465mm
  • Rack: 500 x 600mm
  • Clear entry: 560mm
  • Rinse water: 2.2L per cycle
  • Water connection: G3/4; 4L/min; minimum 1.5 bar; maximum 20Β°C inlet; 23.6mm wastewater connection
  • Electrical: 415V three phase, 20A, 9.7kW standard; 25A / 11.5kW or 32A / 15.7kW optional
  • Cycle times: 80 / 110 / 140 seconds
  • Tank / noise: 35L / 62dB(A)
  • Weight: 148 / 167kg net / gross

Standard Inclusions

PT-M Energy

  • 500 x 500mm flat rack
  • 500 x 500mm plate rack
  • Three-phase lead
  • 1m water and waste hoses

PT-L Energy

  • 500 x 500mm flat rack
  • 500 x 500mm plate rack
  • Three-phase lead
  • 1m water and waste hoses

PT-XL Energy

  • 500 x 600mm flat rack
  • 500 x 600mm plate rack
  • Three-phase lead
  • 1m water and waste hoses

Controls, Hygiene & Wash Performance

  • Exhaust-air heat recovery reduces steam release into the wash area
  • Smart touch display and S-shaped wash fields
  • VarioPower adjustable wash pressure
  • Quadruple filtration with clouding sensor
  • EnergyLight wastewater heat recovery
  • Connected Wash and automatic start/close timer

Matched Racks, Water Treatment & Chemicals

  • Choose racks by chamber size exactly as for standard PT; heat recovery does not change the need to match cells and supports to the ware.
  • AT Excellence-M can support polish-free PT results; confirm simultaneous flow and cold-water requirements with the Energy configuration.
  • Match detergent and rinse aid to the ware material and soil rather than treating the Energy model as a different chemical application.

Installation & Operating Considerations

  • Confirm the exact electrical build, water pressure, inlet temperature, drainage and backflow requirements on the final specification sheet and supplier quotation.
  • Allow service access, door or hood movement and a safe dirty-to-clean workflow; external dimensions alone do not define a workable wash area.
  • Commission chemicals, water treatment and programs to the local water and actual ware. Published outputs are theoretical and depend on loading and site services.
