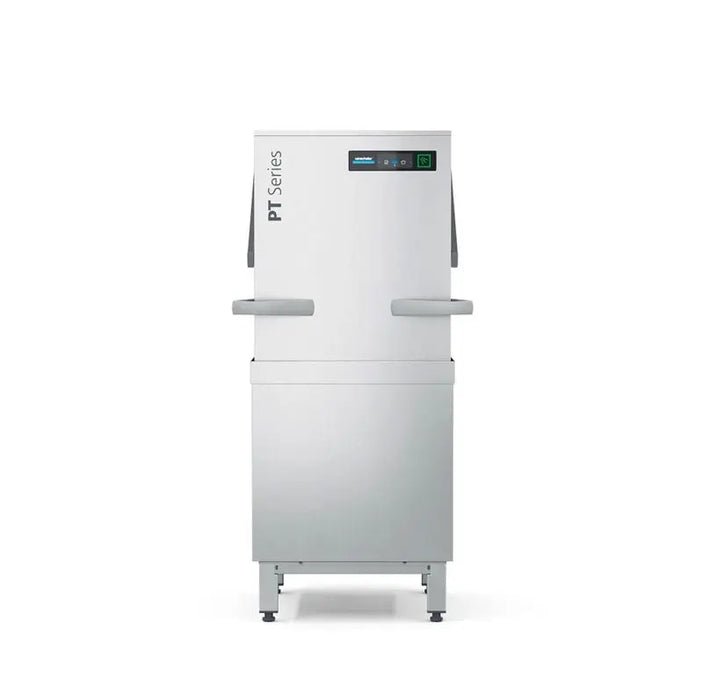

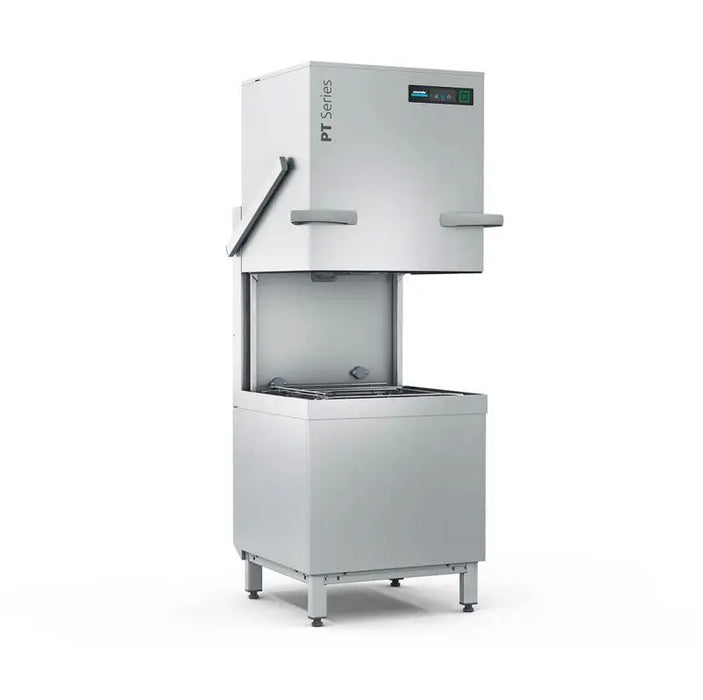

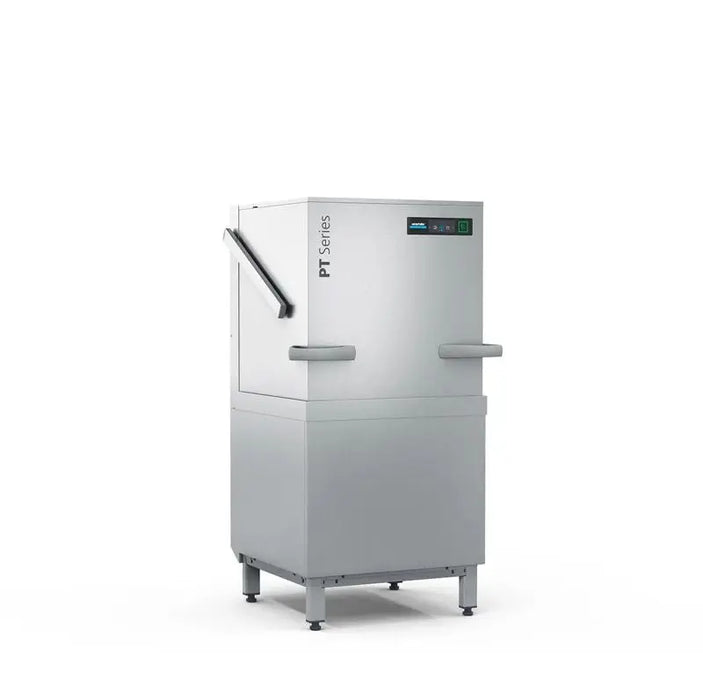

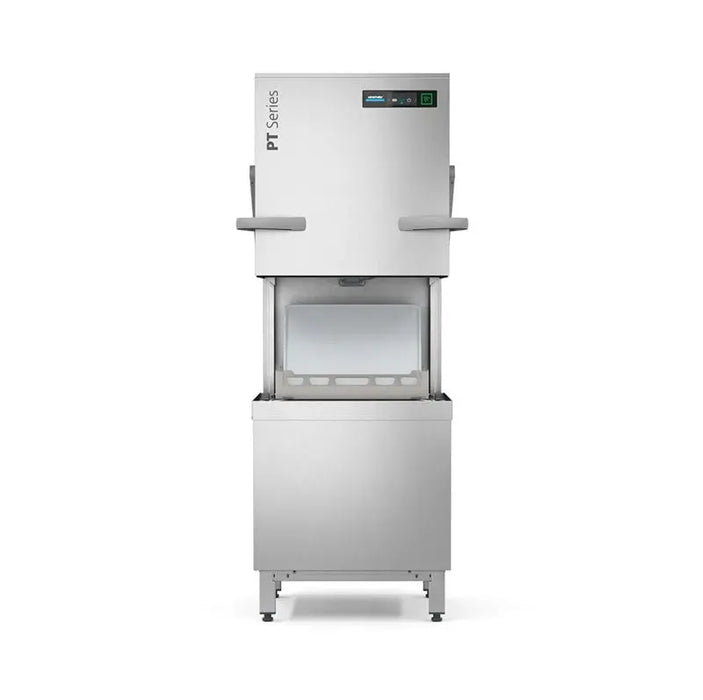

Winterhalter PT Series Energy Utensil Pass Through Dishwashers  Passthrough Dishwasher

Winterhalter PT Energy Utensil Pass-Through Dishwashers

$32,032.00 - $33,718.00
$32,032.00
$32,032.00 - $33,718.00
$32,032.00
SKU 520V0016

A mixed dish-and-utensil pass-through platform with exhaust-air heat recovery, designed for kitchens that need both intensive wash flexibility and better control of steam around the hood.

  • Dedicated dishes, utensils and intensive utensil programs
  • Smart touch display and S-shaped wash fields
  • VarioPower adjustable wash pressure
  • Stainless utensil rack and mixed-use plastic rack included
  • Exhaust-air heat recovery reduces steam and preheats cold inlet water
  • Connected Wash and automatic start/close timer

Why Choose This Product

Choose PT Energy Utensil when one wash line must handle plates and production ware, yet room heat and steam make a standard hood machine uncomfortable or ventilation-heavy. It combines the PT Utensil program set and rack package with the Energy configuration, solving two operational problems with one correctly planned machine.


Dimensions 735w x 750d x 2225h
Rack Dimension 500 x 500 / 500 x 600
Clear Entry Height 440
Rinse Water Consumption 2.4 / 4.0 Per litre on Utensil Plus Cycle

Dimensions 735w x 750d x 2465h
Rack Dimension 500 x 600 / 500 x 500
Clear Entry Height 440
Rinse Water Consumption 2.4 / 4.0L Utensil Plus Cycle
Simply Hospitality Notes

This is the most specification-sensitive PT configuration. Confirm the exact model sheet, hood opening, cold-water supply, three-phase load, ceiling height and rack package on the supplier quotation. If the customer mainly washes utensils, compare a UF; if steam is already well managed, standard PT Utensil may be the simpler investment.

Product Guide

Choose PT-L Energy Utensil for mixed-duty 500mm racks with heat recovery. Choose PT-XL Energy Utensil where the larger rack format is required, but verify clear entry against the final build because the uploaded sheet records 440mm. Compare standard PT Utensil where heat recovery is not operationally valuable.

Brand Guide

About Winterhalter: Winterhalter specialises in professional warewashing as a complete system: the machine, water treatment, chemicals and rack are selected to work together. Its UC undercounter, PT pass-through and UF utensil platforms are engineered for dependable wash quality, hygiene control and operating efficiency, with features such as VarioPower pressure adjustment, multi-stage filtration, connected monitoring and heat recovery applied according to the workload.

Operational Fit

PT-L Energy Utensil is the 500mm-rack option for mixed loads. PT-XL Energy Utensil accommodates 500 x 600mm or 500 x 500mm racks and carries the tallest heat-recovery cabinet. The uploaded PT-XL Energy Utensil sheet records a 440mm clear entry, so the largest proposed item should be confirmed against the final supplied build before order.

Model Selection & Technical Specifications

PT-L Energy Utensil

  • Dimensions (W x D x H): 735 x 750 x 2225mm
  • Rack: 500 x 500mm / 500 x 600mm
  • Clear entry: 440mm
  • Rinse water: 2.4L dish cycle; 4L utensil-plus cycle
  • Water connection: G3/4; 4L/min; minimum 1.5 bar; maximum 20°C inlet; 23.6mm wastewater connection
  • Electrical: 415V three phase, 20A, 8.6kW standard; 25A or 32A, 13.6kW optional
  • Cycle times: 2 / 4 / 6 minutes
  • Tank / noise: 36L / 62dB(A)
  • Weight: 163 / 187kg net / gross

PT-XL Energy Utensil

  • Dimensions (W x D x H): 735 x 750 x 2465mm
  • Rack: 500 x 600mm / 500 x 500mm
  • Clear entry: 440mm (as recorded on the uploaded specification sheet)
  • Rinse water: 2.4L dish cycle; 4L utensil-plus cycle
  • Water connection: G3/4; 4L/min; minimum 1.5 bar; maximum 20°C inlet; 23.6mm wastewater connection
  • Electrical: 415V three phase, 20A, 8.6kW standard; 25A or 32A, 13.6kW optional
  • Cycle times: 2 / 4 / 6 minutes
  • Tank / noise: 36L / 62dB(A)
  • Weight: 148 / 167kg net / gross

Standard Inclusions

PT-L Energy Utensil

  • Stainless-steel utensil rack
  • Mixed-use plastic rack
  • Three-phase lead
  • 1m water and waste hoses

PT-XL Energy Utensil

  • Stainless-steel utensil rack
  • Mixed-use plastic rack
  • Three-phase lead
  • 1m water and waste hoses

Controls, Hygiene & Wash Performance

  • Dedicated dishes, utensils and intensive utensil programs
  • Smart touch display and S-shaped wash fields
  • VarioPower adjustable wash pressure
  • Stainless utensil rack and mixed-use plastic rack included
  • Exhaust-air heat recovery reduces steam and preheats cold inlet water
  • Connected Wash and automatic start/close timer

Matched Racks, Water Treatment & Chemicals

  • Choose racks by chamber size exactly as for standard PT; heat recovery does not change the need to match cells and supports to the ware.
  • AT Excellence-M can support polish-free PT results; confirm simultaneous flow and cold-water requirements with the Energy configuration.
  • Match detergent and rinse aid to the ware material and soil rather than treating the Energy model as a different chemical application.

Installation & Operating Considerations

  • Confirm the exact electrical build, water pressure, inlet temperature, drainage and backflow requirements on the final specification sheet and supplier quotation.
  • Allow service access, door or hood movement and a safe dirty-to-clean workflow; external dimensions alone do not define a workable wash area.
  • Commission chemicals, water treatment and programs to the local water and actual ware. Published outputs are theoretical and depend on loading and site services.
