Winterhalter PT Series Utensil Pass Through DishwashersΒ  Passthrough Dishwasher

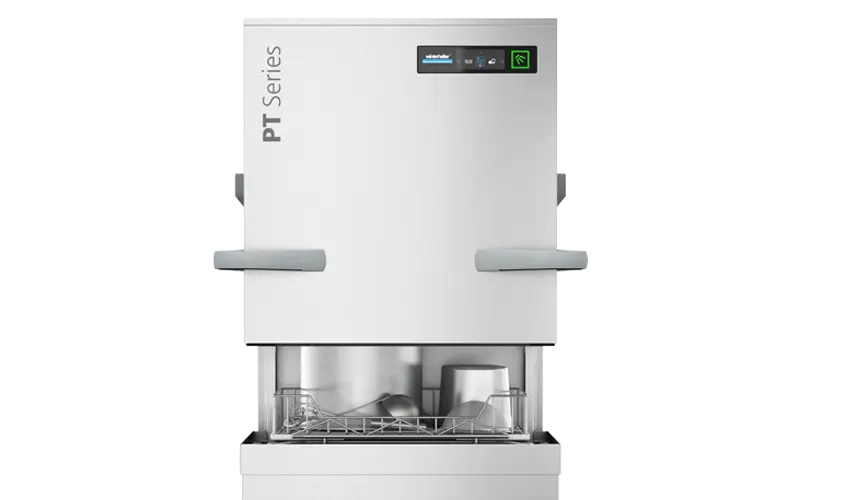

Winterhalter PT Utensil Pass-Through Dishwashers

$27,063.00 - $28,394.00
$27,063.00
$27,063.00 - $28,394.00
$27,063.00
SKU 520V0015

A mixed-duty pass-through system that can switch between dishes and heavily soiled utensils, giving production kitchens one rack-flow machine for two very different wash loads.

  • Dedicated dishes, utensils and intensive utensil programs

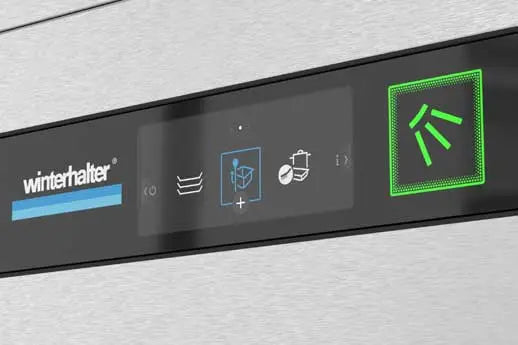

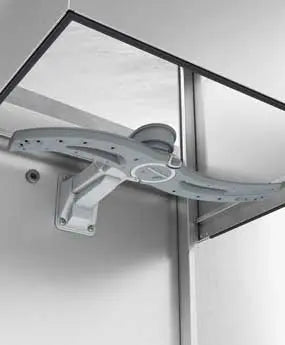

  • Smart touch display and S-shaped wash fields
  • VarioPower adjustable wash pressure

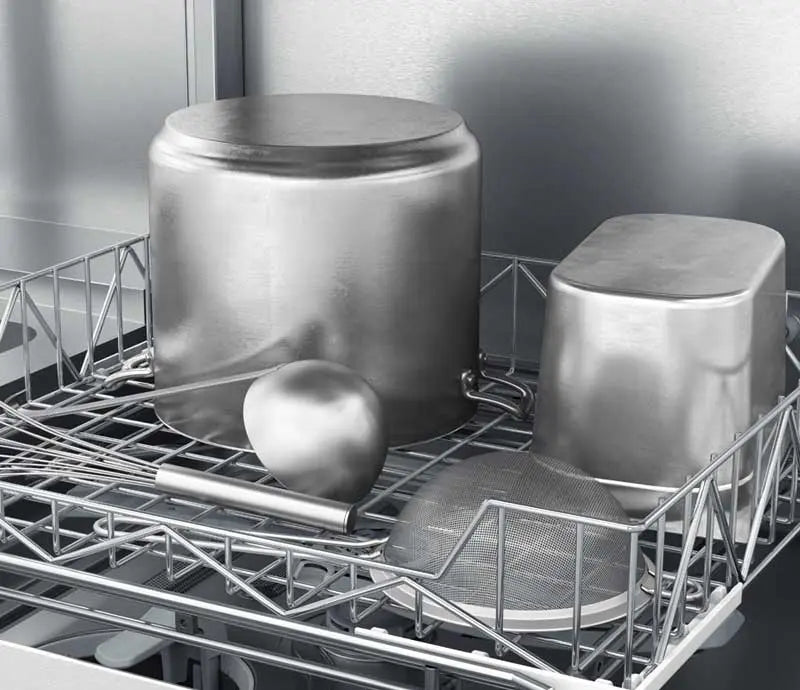

  • Stainless utensil rack and mixed-use plastic rack included

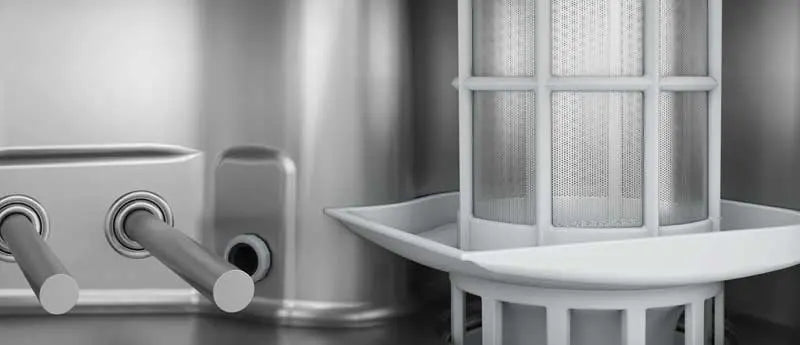

  • Quadruple filtration with clouding sensor
  • Connected Wash and automatic start/close timer

Why Choose This Product

Choose PT Utensil when the site cannot justify separate dish and pot-wash machines but still needs a credible answer to both loads. Dedicated programs, higher utensil rinse volume and the supplied stainless utensil rack make the changeover real rather than cosmetic, while retaining the ergonomics of a pass-through line.


Clear entry height: 440 mm
CDimensions (W x D x H in mm): 735 x 750 x 1,535
CHeight (with hood open): 2,010 mm
CWorking height: 850 mm (optional: 900 mm)
CRack dimensions: 500 x 600 mm / 500 x 500 mm
CSpecial features: available with automatic hood

Clear entry height: 560 mm
Dimensions (W x D x H in mm): 735 x 750 x 1,655
Height (with hood open): 2,250 mm
Working height: 850 mm (optional: 900 mm)
Rack dimensions: 500 x 600 mm / 500 x 500 mm
Special features: also for GN-2/1 trays
Simply Hospitality Notes

Map the daily split between dishes and utensils before choosing this machine. If utensil loads dominate or soil is routinely baked-on, compare UF; if dishes dominate with only occasional pots and containers, PT Utensil can consolidate the wash line effectively. Check that the largest utensil fits the selected rack and hood opening.

Product Guide

Choose PT-L Utensil for mixed dish and utensil work within a 440mm entry. Choose PT-XL Utensil for larger items needing the 560mm opening and 500 x 600mm rack. Choose PT Energy Utensil where the same mixed workload also creates a steam or room-heat problem.

Brand Guide

About Winterhalter: Winterhalter specialises in professional warewashing as a complete system: the machine, water treatment, chemicals and rack are selected to work together. Its UC undercounter, PT pass-through and UF utensil platforms are engineered for dependable wash quality, hygiene control and operating efficiency, with features such as VarioPower pressure adjustment, multi-stage filtration, connected monitoring and heat recovery applied according to the workload.

Operational Fit

PT-L Utensil suits standard 500mm dish racks and mixed utensil loads through a 440mm opening. PT-XL Utensil adds a 560mm clear entry and 500 x 600mm rack capability for taller or longer production items. Both remain compromises only if the utensil volume is so high that a dedicated UF washer would be more productive.

Model Selection & Technical Specifications

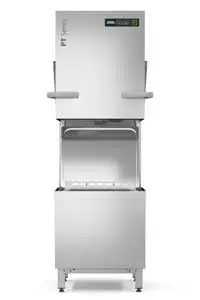

PT-L Utensil

  • Dimensions (W x D x H): 735 x 750 x 1585–2060mm
  • Rack: 500 x 500mm / 500 x 600mm
  • Clear entry: 440mm
  • Rinse water: 2.4L dish cycle; 4L utensil-plus cycle
  • Water connection: G3/4; 4L/min; minimum 1.0 bar; maximum 60Β°C inlet; 23.6mm wastewater connection
  • Electrical: 415V three phase, 20A, 8.6kW standard; 25A or 32A, 13.6kW optional
  • Cycle times: 2 / 4 / 6 minutes
  • Tank / noise: 36L / 62dB(A)
  • Weight: 142 / 158kg net / gross

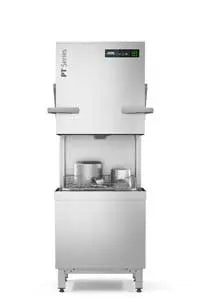

PT-XL Utensil

  • Dimensions (W x D x H): 735 x 750 x 1705–2300mm
  • Rack: 500 x 600mm / 500 x 500mm
  • Clear entry: 560mm
  • Rinse water: 2.4L dish cycle; 4L utensil-plus cycle
  • Water connection: G3/4; 4L/min; minimum 1.0 bar; maximum 60Β°C inlet; 23.6mm wastewater connection
  • Electrical: 415V three phase, 20A, 8.6kW standard; 25A or 32A, 13.6kW optional
  • Cycle times: 2 / 4 / 6 minutes
  • Tank / noise: 36L / 62dB(A)
  • Weight: 172 / 202kg net / gross

Standard Inclusions

PT-L Utensil

  • Stainless-steel utensil rack
  • Mixed-use plastic rack
  • Three-phase lead
  • 1m water and waste hoses

PT-XL Utensil

  • Stainless-steel utensil rack
  • Mixed-use plastic rack
  • Three-phase lead
  • 1m water and waste hoses

Controls, Hygiene & Wash Performance

  • Dedicated dishes, utensils and intensive utensil programs
  • Smart touch display and S-shaped wash fields
  • VarioPower adjustable wash pressure
  • Stainless utensil rack and mixed-use plastic rack included
  • Quadruple filtration with clouding sensor
  • Connected Wash and automatic start/close timer

Matched Racks, Water Treatment & Chemicals

  • The supplied stainless utensil and mixed-use plastic racks are the starting package; add specialist inserts only after measuring production ware.
  • DuoMatik 3 suits higher continuous demand; AT Excellence-M is justified where presentation ware shares the machine and polishing reduction matters.
  • F6200 is the main heavy-duty utensil comparison; A 100 e/A 140 e can support pre-soaking where dried food or protein drives manual labour.

Installation & Operating Considerations

  • Confirm the exact electrical build, water pressure, inlet temperature, drainage and backflow requirements on the final specification sheet and supplier quotation.
  • Allow service access, door or hood movement and a safe dirty-to-clean workflow; external dimensions alone do not define a workable wash area.
  • Commission chemicals, water treatment and programs to the local water and actual ware. Published outputs are theoretical and depend on loading and site services.
