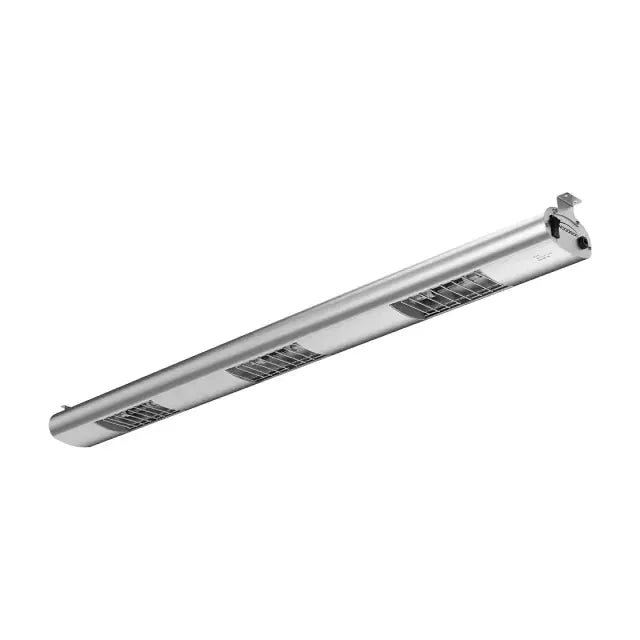

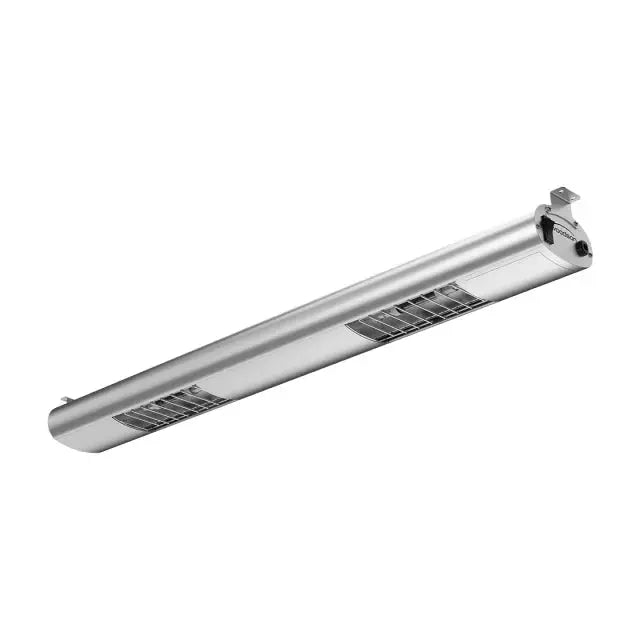

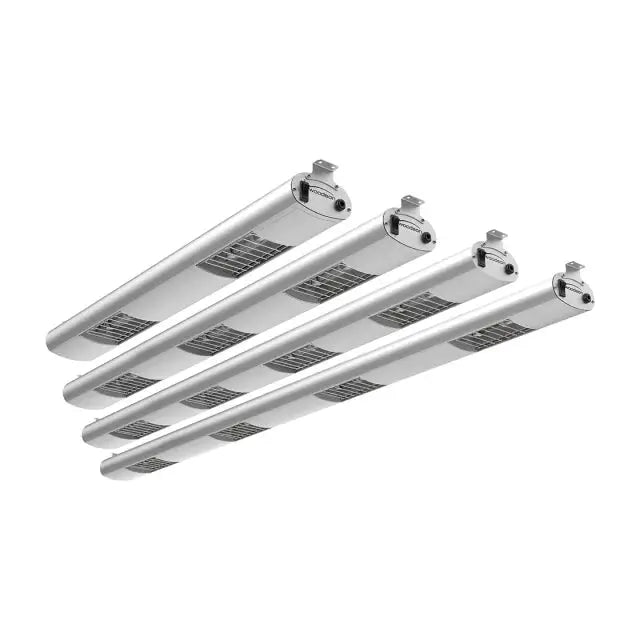

Woodson Heat Lamp Assembly W.HLE

Original price $712.30 - Original price $985.52
Original price
$712.30
$712.30 - $985.52
Current price $712.30
SKU W.HLE0850.S

A Woodson infrared heat-lamp assembly for supporting plated food at the pass.

Key Features

  • Quartz infrared heating
  • Multiple assembly lengths
  • Commercial pass construction
  • Model-specific mounting options

Why Choose This Product

Choose the assembly length from the active plating zone. Even coverage over the pass is more valuable than simply fitting the longest lamp available.

Simply Hospitality Notes

Align the lamps over the actual plate landing area and minimise time beneath them to protect food quality.

Product Guide

Choose the assembly length from the active plating zone. Even coverage over the pass is more valuable than simply fitting the longest lamp available. Confirm hard-wired or plug-in connection, mounting kit, clearance and number of lamps. Heat lamps maintain hot food; they do not reheat cold plates.

Brand Guide

About Woodson: Woodson is Stoddart's Australian-made range of countertop cooking, food display, hot holding and light-production equipment. The range is designed for commercial kitchens that need robust, serviceable appliances with clear model choices rather than unnecessary complexity. Woodson spans fryers, grills, conveyor ovens, bain maries, pie warmers, induction, heat lamps and coordinated servery accessories. Selection should be based on peak throughput, product format, power supply, operator workflow and the accessories or pan layout required by the exact model.

Current Model Selection

W.HLE0850.SStandard Assembly - 850mm Features - 2 x 300W Quartz Infra-red heat lamps | Dimensions: 910 x 118 x 83 Weight: 3kg | Electrical: 0.6kW 10A, 240V plug & lead
W.HLE1150.SStandard Assembly - 1150mm Features - 3 x 300W Quartz Infra-red heat lamps | Dimensions: 1210 x 118 x 83 Weight: 3.5kg | Electrical: 0.9kW 10A, 240V plug & lead
W.HLE1450.SStandard Assembly - 1450mm Features - 4 x 300W Quartz Infra-red heat lamps | Dimensions: 1510 x 118 x 83 Weight: 4.5kg | Electrical: 1.2kW 10A, 240V plug & lead
W.HLE1750.SStandard Assembly - 1750mm Features - 4 x 300W Quartz Infra-red heat lamps | Dimensions: 1810 x 118 x 83 Weight: 5kg | Electrical: 1.2kW 10A, 240V plug & lead

Selection and Installation

Confirm hard-wired or plug-in connection, mounting kit, clearance and number of lamps. Heat lamps maintain hot food; they do not reheat cold plates.
