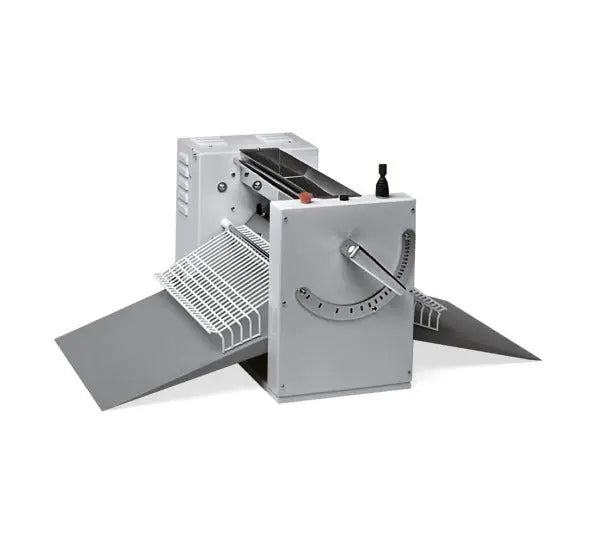

ZMatik SF500SP Compact Bench Dough Sheeter - 500mm

Name: ZMatik SF500SP Compact Bench Dough Sheeter - 500mm
Brand: Teutonia
SKU: SF500SP
Price: 8502.81 NZD
Availability: InStock

$8,502.81 - $8,502.81

$8,502.81

$8,502.81 - $8,502.81

$8,502.81

SKU SF500SP

A compact, beltless bench sheeter for bakeries and pastry kitchens that need mechanical consistency without dedicating floor space to a conveyor machine. The 496mm roller, 4kg dough capacity and 1-34mm adjustment range suit smaller batches, while the 230V single-phase connection simplifies installation.

Key Features

Compact bench format with no conveyor belts
496mm roller width and 60mm roller diameter
Up to 4kg dough capacity
Manual thickness adjustment from 1mm to 34mm
Teflon-coated stainless steel feeding planes
Stainless steel and aluminium construction
Interlocked guards on both sides
Removable upper and self-regulating lower scrapers
230V single-phase connection

Why Choose This Product

Choose the SF500SP when bench space and electrical simplicity matter more than a long reversible conveyor. Its beltless feed planes make it substantially more compact than the SHB bench models, while the 496mm roller still handles useful pastry width. It is the most logical entry point for smaller production runs, recipe development and kitchens replacing repetitive hand rolling without needing a full laminating line.

Simply Hospitality Notes

The SF500SP is the only beltless and single-phase machine in this group. Allow a strong bench for the 70kg unit and confirm the 972 x 827mm footprint. Its 4kg dough capacity and 1-34mm adjustment range make it a compact production aid, not a substitute for the longer-table reversible models in higher-volume laminating work.

Product Guide

Choose this model when compact installation and 230V power are decisive. For repeated lamination using longer sheets, compare it with the SHB50B075: that model adds reversible conveyor belts and a 1-40mm range but requires more bench space and 400V power. The SF500SP is rated for dough pieces up to 4kg.

Brand Guide

About ZMatik: ZMatik manufactures Italian pastry and bakery machinery focused on controlled dough processing. Its dough-sheeter range progresses from compact beltless bench equipment through reversible bench models to full floor-standing production machines, allowing bakeries to match working width, table support and throughput to the way they actually produce.

Product Details

The SF500SP is configured as a bench, beltless dough sheeter with a 496mm roller working format. Its controlled thickness adjustment and guarded rolling system are designed to reduce the physical variability of hand rolling and give pastry teams a more repeatable process across batches.

Best Suited To

small bakeries and patisseries with restricted floor space
restaurants producing pastry or dough in batches up to 4kg
test kitchens and lower-volume laminated pastry work
sites requiring a 230V single-phase bench machine

Technical Specifications

Brand	ZMatik
Model	SF500SP
Machine format	Bench, beltless
Working width	496mm roller
Table / feed configuration	Teflon-coated stainless feed planes
Sheeting thickness	1-34mm
Voltage	230V / single phase
Power	0.37 HP
Dimensions	972(W) x 827(D) x 477(H)mm
Weight	70kg

Standard & Optional Equipment

Teflon-coated stainless steel feed planes and safety guards are standard.

Installation, Cleaning & Operating Considerations

Follow the supplied operating instructions for guarding, dough loading, thickness reduction and cleaning. Isolate electrical power before maintenance, keep belts or feeding surfaces free from product build-up and never bypass the interlocked safety guards.

Downloads & Documentation

ZMatik SF500SP Specification Sheet - Simply Hospitality

Dimension 972(W) x 827(D) x 477(H)mm
Weight 70kg
