ZMatik SHB50B075 Bench Reversible Dough Sheeter - 500mm - Simply Hospitality NZ

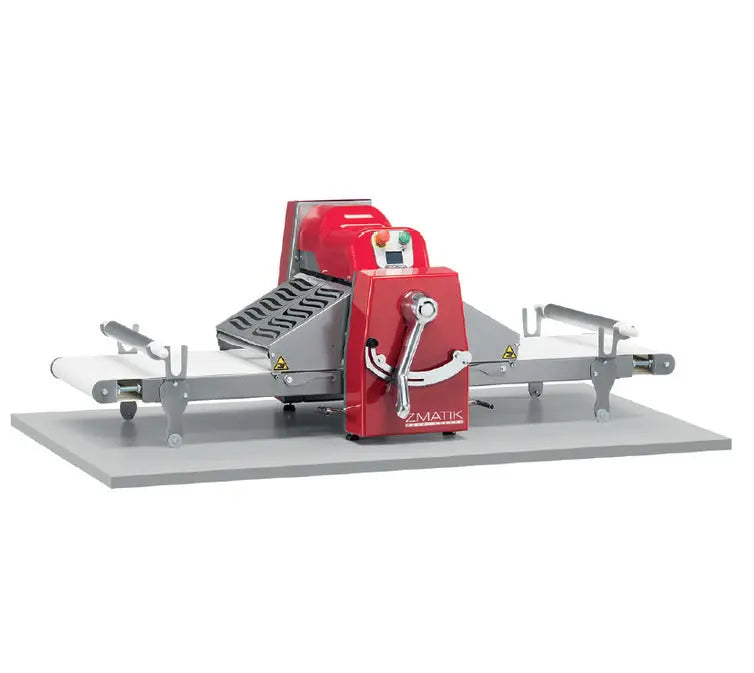

ZMatik SHB50B075 Bench Reversible Dough Sheeter - 500mm

$11,270.00 - $11,270.00
$11,270.00
$11,270.00 - $11,270.00
$11,270.00
SKU SHB50B075

A 500mm reversible bench sheeter for pastry kitchens that want the control of bidirectional conveyor belts without committing to a floor-standing machine. Twin 750mm tables, a 1-40mm thickness range and folding construction create a capable laminating station for confined bakery spaces.

Key Features

  • 500mm working width with two 750mm tables
  • Reversible dual-direction conveyor belts
  • Manual thickness adjustment from 1mm to 40mm
  • Locking thickness scale with adjustable final-thickness stop
  • High-strength oil-resistant fibre belt
  • Interlocked guards on both sides
  • Removable scrapers for easier cleaning
  • Tables fold upward after production

Why Choose This Product

Choose the SHB50B075 when you need genuine reversible-belt control but cannot allocate permanent floor space to a full-size sheeter. Its 500mm working width is ample for many artisan pastry formats, and the 750mm tables keep the operating length more manageable than either the 600mm bench model or the floor machines. It is a meaningful step up from the SF500SP for repeated lamination and progressive dough reduction.
Simply Hospitality Notes

This machine still requires substantial support despite being bench mounted: it weighs 135kg and measures 1820mm wide in operation. Confirm a suitable bench, 400V electrical supply and safe working clearance. The optional dough-tray kit is not included. Folded tables make storage easier between runs.

Product Guide

The SHB50B075 is the compact reversible-belt choice: 500mm working width, 750mm tables and 1-40mm adjustment. Choose the SHB60B100 when larger 600mm dough sheets and 1000mm tables justify the extra width. Choose the SF500SP instead when single-phase power and the smallest possible bench footprint take priority over conveyors.

Brand Guide

About ZMatik: ZMatik manufactures Italian pastry and bakery machinery focused on controlled dough processing. Its dough-sheeter range progresses from compact beltless bench equipment through reversible bench models to full floor-standing production machines, allowing bakeries to match working width, table support and throughput to the way they actually produce.

Product Details

The SHB50B075 is configured as a bench reversible dough sheeter with a 500mm working format. Its controlled thickness adjustment and guarded rolling system are designed to reduce the physical variability of hand rolling and give pastry teams a more repeatable process across batches.

Best Suited To

  • patisseries and artisan bakeries with confined production areas
  • restaurants running an in-house pastry programme
  • operators who need reversible belts in a bench format
  • laminated pastry work that fits a 500mm working width

Technical Specifications

BrandZMatik
ModelSHB50B075
Machine formatBench reversible
Working width500mm
Table / feed configuration2 x 500 x 750mm
Sheeting thickness1-40mm
Voltage400V
Power0.75 HP
Dimensions1820(W) x 980(D) x 650(H)mm
Weight135kg

Standard & Optional Equipment

The reversible conveyor system and safety guards are standard. The stainless steel dough collecting tray kit is optional.

Installation, Cleaning & Operating Considerations

This machine still requires substantial support despite being bench mounted: it weighs 135kg and measures 1820mm wide in operation. Confirm a suitable bench, 400V electrical supply and safe working clearance. The optional dough-tray kit is not included. Folded tables make storage easier between runs.

Follow the supplied operating instructions for guarding, dough loading, thickness reduction and cleaning. Isolate electrical power before maintenance, keep belts or feeding surfaces free from product build-up and never bypass the interlocked safety guards.

Downloads & Documentation

  • Dimension 1820(W) x 980(D) x 650(H)mm
  • Weight 135kg
