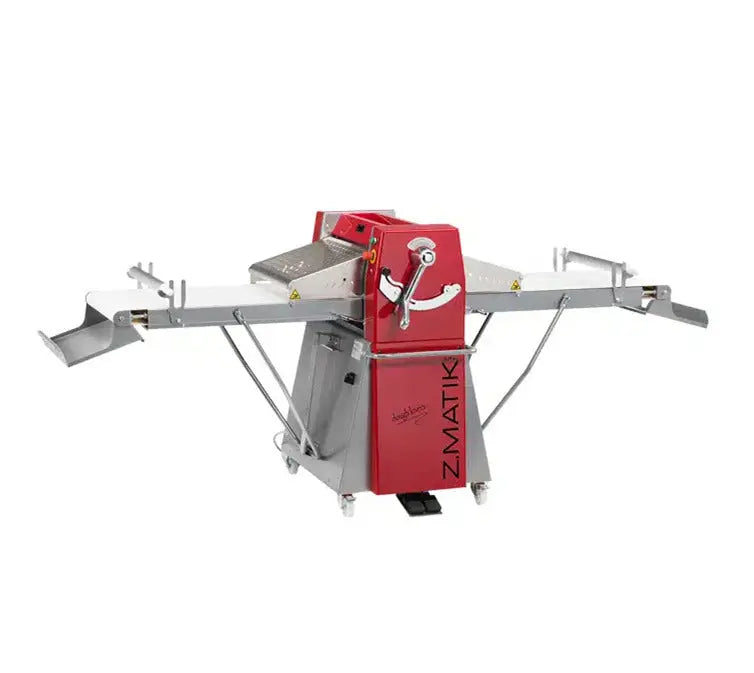

ZMatik SHE60140 Floor Standing Dough Sheeter - 600mm

Name: ZMatik SHE60140 Floor Standing Dough Sheeter - 600mm
Brand: Teutonia
SKU: SHE60140
Price: 15043.44 NZD
Availability: InStock

$15,043.44 - $15,043.44

$15,043.44

$15,043.44 - $15,043.44

$15,043.44

SKU SHE60140

A 600mm floor-standing reversible sheeter built for bakeries that need generous support for larger pastry pieces and repeatable dough reduction. Its twin 1400mm tables, bidirectional belts and 1-50mm thickness range make it the production-focused model in the ZMatik sheeter line-up.

Key Features

600mm working width with two 1400mm tables
Reversible dual-direction conveyor belts
Manual thickness adjustment from 1mm to 50mm
Locking thickness scale with adjustable final-thickness stop
Interlocked safety guards on both sides
Removable scrapers for easier end-of-shift cleaning
Tables fold upward to reduce the stored footprint
Stainless steel dough collecting trays included

Why Choose This Product

Choose the SHE60140 when the extra 600mm working width and long 1400mm tables directly support the pastry sizes and production rhythm of your bakery. The larger bed gives dough more support through progressive passes, which is particularly valuable for laminated products and longer sheets. It is the stronger choice over the 500mm floor model when usable working area matters more than floor-space economy.

Simply Hospitality Notes

This is a genuinely large production machine: plan around the full 3410mm operating width, a 280kg delivery weight and a 400V three-phase connection. Folding tables reduce the footprint after production but do not remove the need for safe loading, cleaning and operator clearance. Foot-pedal control is optional.

Product Guide

Select the SHE60140 when 600mm-wide dough and 1400mm tables improve your product mix or throughput. The smaller SHE50100 retains the same 1-50mm thickness range in a 500mm format with shorter 1000mm tables. Confirm doorway access, floor loading, three-phase power and the machine's full operating width before ordering.

Brand Guide

About ZMatik: ZMatik manufactures Italian pastry and bakery machinery focused on controlled dough processing. Its dough-sheeter range progresses from compact beltless bench equipment through reversible bench models to full floor-standing production machines, allowing bakeries to match working width, table support and throughput to the way they actually produce.

Product Details

The SHE60140 is configured as a floor standing reversible dough sheeter with a 600mm working format. Its controlled thickness adjustment and guarded rolling system are designed to reduce the physical variability of hand rolling and give pastry teams a more repeatable process across batches.

Best Suited To

production bakeries making croissants, puff pastry and Danish products
sites processing larger or longer sheets of dough
pastry operations that need repeatability across frequent batches
bakeries with the space and three-phase supply for a full-size machine

Technical Specifications

Brand	ZMatik
Model	SHE60140
Machine format	Floor standing reversible
Working width	600mm
Table / feed configuration	2 x 600 x 1400mm
Sheeting thickness	1-50mm
Voltage	400V / 3 phase
Power	1 HP
Dimensions	3410(W) x 1110(D) x 1130(H)mm
Weight	280kg

Standard & Optional Equipment

Stainless steel dough collecting trays are supplied. Foot-pedal control is optional.

Installation, Cleaning & Operating Considerations

Follow the supplied operating instructions for guarding, dough loading, thickness reduction and cleaning. Isolate electrical power before maintenance, keep belts or feeding surfaces free from product build-up and never bypass the interlocked safety guards.

Downloads & Documentation

ZMatik SHE60140 Specification Sheet - Simply Hospitality

Dimension 3410(W) x 1110(D) x 1130(H)mm
Weight 280kg
