Blue Seal Evolution Series G56D - 900mm Gas Range Convection Oven  Ovens & Ranges

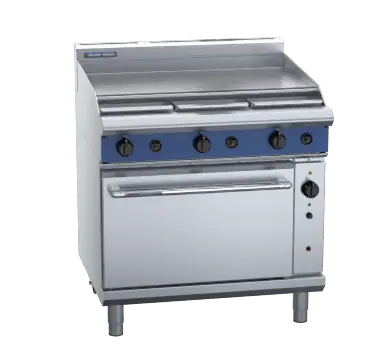

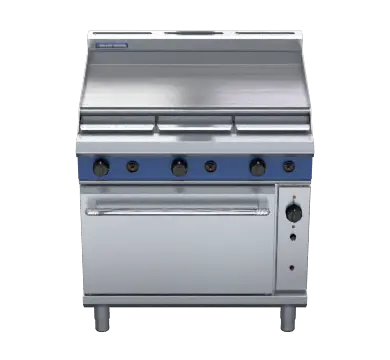

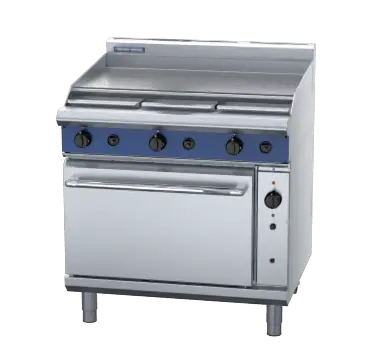

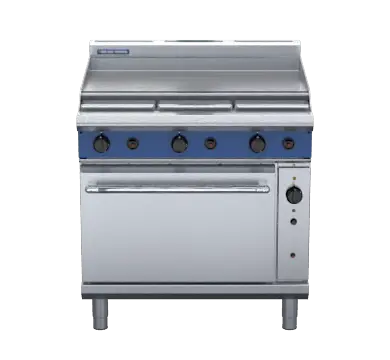

Blue Seal Evolution Series G56D - 900mm Gas Range Convection Oven

$13,412.29 - $13,412.29
$13,412.29
$13,412.29 - $13,412.29
$13,412.29
SKU G56D-NG

Blue Seal Evolution Series G56D - 900mm Gas Range Convection Oven is a commercial oven range for professional kitchens. Its 900mm format and Blue Seal heavy-duty construction make it a practical option for combining top cooking with oven production in one coordinated line.

  • 6 burners cooktop on gas range convection oven
  • 2/1 GN gas convection oven
  • 6 x 28MJ/hr open burners
  • 50-320C thermostatic control
  • Heavy-duty stainless steel finish
  • Flame failure protection on all burners
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands
  • Heavy-duty reinforced control knobs
Why Choose This Product.

G56D is a strong choice when pan work and oven production need a single dependable centrepiece. Its all-burner gas top suits restaurant, hotel and institutional lines combining top cooking with roasting or trays, while the oven below makes the same footprint work across two production tasks. Choose it when the exact top layout and oven style match the menu.
Simply Hospitality Notes

We'd specify G56D where the productive main-line format and all-burner gas top match the real service pattern. Before ordering, confirm top configuration, oven type, services, extraction and door clearance, including the correct Natural Gas or LPG version.

Product Guide

Use G56D for restaurant, hotel and institutional lines combining top cooking with roasting or trays. Its all-burner gas top works best where the oven below makes the same footprint work across two production tasks. Choose it when the exact top layout and oven style match the menu; confirm top configuration, oven type, services, extraction and door clearance, including the correct Natural Gas or LPG version before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series G56D - 900mm Gas Range Convection Oven

Technical specifications

ModelG56D
Product categoryOven Ranges
BurnersOpen Burners 28MJ/hr dual flame ring with; simmer rate
GriddleBurners 20MJ/hr per 300mm section
Oven30MJ tubular under cast iron sole plate
Gas power198 MJ/hr, 55kW; Oven Fan Motor; 100W
Electrical requirements230-240Vac, 50/60hz, 1P+N+E, 0.13kW, 0.6A; 3 pin 10A plug cordset fitted; Griddle Plate; 300mm Griddle cooking surface; 292mm x 475mm, 1387cm²; 600mm Griddle cooking surface; 592mm x 475mm, 2812cm²; 900mm Griddle cooking surface; 892mm x 475mm, 4237cm²
Oven dimensionsWidth 665mm; Depth 590mm; Height 385mm
Racksize 660mm x 540mm
Gas connectionR 3/4 (BSP) male; Optional underside connection, please specify when; ordering; All units supplied with Natural and LP gas regulator
DimensionsW: 900mm D: 812mm H: 1085mm
Packed weight277kg
Packed volume1.03m³
Gas typesNatural Gas or LPG

Available options

  • Adjustable feet at rear
  • Simmer plates (replaces Potstand)
  • Ribbed griddle plates
  • Joining caps
  • Castors

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 900mm D: 812mm H: 1085mm
  • Weight 277kg packed
