Blue Seal Evolution Series GE54D - 750mm Gas Range Electric Convection Oven  Cooktops

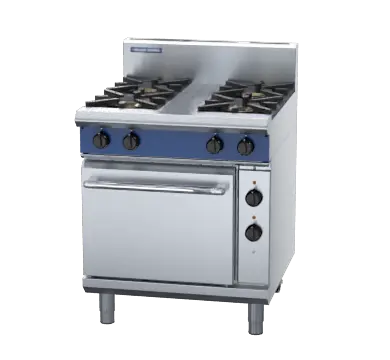

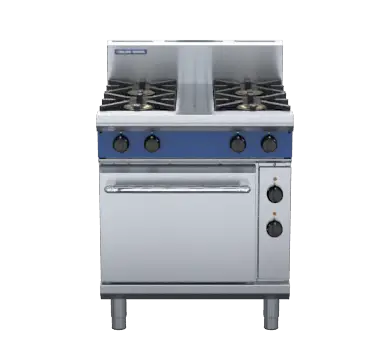

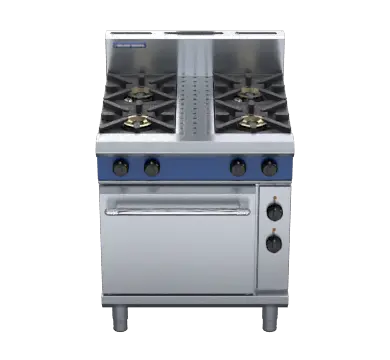

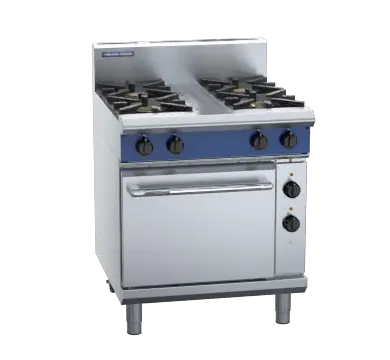

Blue Seal Evolution Series GE54D - 750mm Gas Range Electric Convection Oven

$11,618.29 - $11,618.29
$11,618.29
$11,618.29 - $11,618.29
$11,618.29
SKU GE54D-NG

Blue Seal Evolution Series GE54D - 750mm Gas Range Electric Convection Oven is a commercial oven range for professional kitchens. Its 750mm format and Blue Seal heavy-duty construction make it a practical option for combining top cooking with oven production in one coordinated line.

  • 4 burners cooktop on gas range electric static oven
  • 1/1 GN electric convection oven

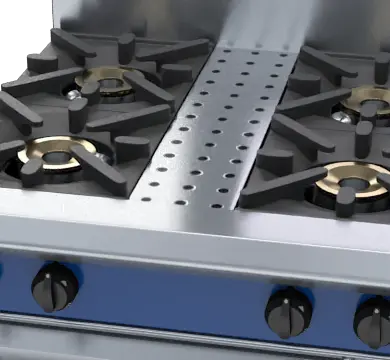

  • 4 x 28MJ/hr open burners
  • 50-320C thermostatic control
  • Heavy-duty stainless steel finish
  • Flame failure protection on all burners
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands
  • Heavy-duty reinforced control knobs
Why Choose This Product.

GE54D is a strong choice when pan work and oven production need a single dependable centrepiece. Its all-burner gas top suits restaurant, hotel and institutional lines combining top cooking with roasting or trays, while the oven below makes the same footprint work across two production tasks. Choose it when the exact top layout and oven style match the menu.
Simply Hospitality Notes

We'd specify GE54D where the balanced mid-width format and all-burner gas top match the real service pattern. Before ordering, confirm top configuration, oven type, services, extraction and door clearance, including the correct Natural Gas or LPG version.

Product Guide

Use GE54D for restaurant, hotel and institutional lines combining top cooking with roasting or trays. Its all-burner gas top works best where the oven below makes the same footprint work across two production tasks. Choose it when the exact top layout and oven style match the menu; confirm top configuration, oven type, services, extraction and door clearance, including the correct Natural Gas or LPG version before purchase.

Brand Guide

About Blue Seal: Blue Seal Evolution is Moffat's heavy-duty modular cooking range for demanding professional kitchens. Its strength is configuration choice across gas, electric and induction equipment, allowing the cook line to be matched to the menu and service intensity. New Zealand-based Moffat support also strengthens the case for parts, servicing and technical guidance.

Blue Seal Evolution Series GE54D - 750mm Gas Range Electric Convection Oven

Technical specifications

ModelGE54D
Product categoryOven Ranges
BurnersOpen Burners 28MJ/hr dual flame ring with; simmer rate
GriddleBurners 20MJ/hr per 300mm section; Oven Elements; 3.75kW bottom heat element; 1.75kW top heat element
Gas power112 MJ/hr, 31.1kW; Oven Fan Motor; 100W
Electrical requirements5.6kW; 1 phase connection:; 230-240Vac, 50/60hz, 1P+N+E, 23.3A; 3 phase connection:; 400-415Vac, 50/60hz, 3P+N+E; L1 7.8A; L2 7.8A; L3 7.7A; Griddle Plate; 300mm Griddle cooking surface; 292mm x 475mm, 1387cm²
Oven dimensionsWidth 500mm; Depth 590mm; Height 385mm
Racksize 495mm x 540mm
Gas connectionR 3/4 (BSP) male; Optional underside connection, please specify when; ordering; All units supplied with Natural and LP gas regulator
Gas typesAvailable in Natural gas and LP gas, please specify; when ordering; Units supplied complete with gas type; conversion kits; Other gas types on request
DimensionsW: 750mm D: 812mm H: 1085mm
Packed weight251kg
Packed volume0.87m³

Available options

  • Adjustable feet at rear
  • Simmer plates (replaces Potstand)
  • Ribbed griddle plates
  • Joining caps
  • Castors

Documents & downloads

Product documents
CAD & BIM files

  • Dimension W: 750mm D: 812mm H: 1085mm
  • Weight 251kg packed
