Blue Seal has long been known for the quality and performance of its commercial deep fryers. The Blue Seal Evolution Series elevates this reputation with a more modern and streamlined design. The entire range of commercial deep fryers is available with either mechanical or digital controls.
```html

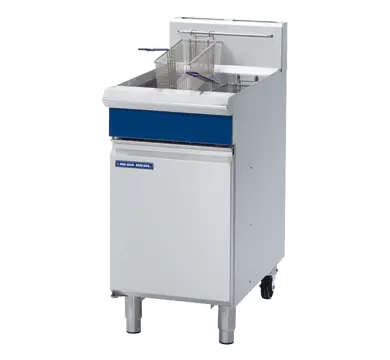

Blue Seal GT45 and GT45E Specifications
Overall Construction
- Stainless steel pan with 10-year limited warranty
- Bull nose welded 1.5mm 304 stainless steel
- Splashback 1.2mm 304 stainless steel
- Side panels 1.2mm 304 stainless steel
- Double skin door with 0.9mm 304 stainless steel exterior
- GT45: Vitreous enameled front panel
- 32mm (1 1/4”) drain valve
- 63mm dia. heavy-duty adjustable legs at front, with two rollers at rear
- Includes 2 baskets and a stainless steel lid as standard
Controls
- GT45
- Direct action thermostat reacts to ±1.0°C
- Thermostat range: 145 – 195°C
- Millivolt gas valve system (no electrical supply required)
- GT45E
- Digital display electronic thermostat
- Thermostat range: 88-193°C
- 3 programmable product timers with countdown display and alarms
- Straight or temperature-compensating cook time control
- Heating and basket drop displays
- Programmable melt cycles
- Over-temperature safety cut-out
- Flame failure protection on each pilot
- Piezo ignition to standing pilot burners
Cleaning and Servicing
- Open stainless steel pan for easy cleaning
- Easy clean basket support bar
- 32mm (1 1/4”) drain valve for effective draining
- Easy clean stainless steel exterior
- Front access to all parts of the unit
Specifications
- Production rate: 31kg/hr
- Pan size:
- Oil capacity: 20L (37lbs shortening)
- Width: 365mm
- Length: 380mm
- Oil frying depth: 95mm
- Baskets:
- 2 chrome-plated wire baskets
- Dimensions: 140mm W x 335mm D x 145mm H
- Stainless steel perforated basket support plate
- Burners: 2 x 45MJ/hr infrared burners
- Gas power: 90MJ/hr, 25kW
- Gas connection:
- R 3/4 (BSP) male
- Optional rear connection (refer to specification drawing)
- Dimensions:
- Width: 450mm
- Depth: 812mm
- Height: 915mm (including splashback: 1085mm)
- Net Weight: 81kg
- Gas types:
- Available in Natural gas and LP gas (please specify when ordering)
- Units supplied complete with gas-type conversion kits
- Other gas types available on request
