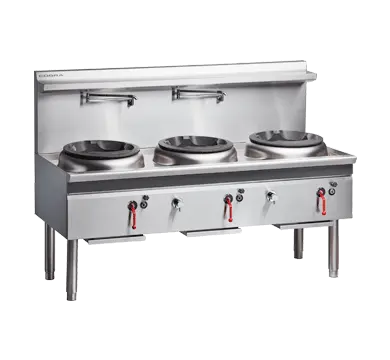

Cobra CW3H – 1800 mm 3-Hole Gas Waterless Wok Range
The Cobra CW3H is a powerful three-hole gas waterless wok range designed for heavy-duty commercial kitchens. Built with stainless-steel construction and a fully waterless wok deck, it delivers exceptional heat, hygiene, and durability. Available in four burner configurations—chimney, combination, and duckbill options—it adapts to diverse cooking techniques in Asian and high-output hospitality kitchens.
Key Features
- Three hole (1800 mm wide) waterless wok range
- Available in four burner configurations:
- CW3H-CCC – 3 × Chimney burners (95 MJ/hr each)
- CW3H-CCD – 2 × Chimney + 1 × Duckbill (95 MJ/hr + 105 MJ/hr)
- CW3H-CDD – 1 × Chimney + 2 × Duckbill (95 MJ/hr + 2 × 105 MJ/hr)
- CW3H-DDD – 3 × Duckbill burners (105 MJ/hr each)
- Double-skin insulated wok deck for reduced heat transfer and safety
- Heavy-duty cast-iron wok rings (removable for cleaning)
- High stainless splashback with folding water arm and shelf
- Rear waste channel and stainless steel spill tray for easy cleaning
- Flame failure protection with pilot burner standard on all models
- Quarter-turn main burner and water valve controls
- Separate gas connection per wok for consistent performance
Model Variants & Burner Performance
| Model |
Burner Configuration |
Burner Rating (MJ/hr) |
Total Gas Load (MJ/hr) |
NZ LPG Total Gas Load (MJ/hr) |
| CW3H-CCC |
3 × Chimney burners (24 jets each) |
95 MJ/hr per burner |
285 MJ/hr |
— |
| CW3H-CCD |
2 × Chimney + 1 × Duckbill |
95 MJ/hr + 105 MJ/hr |
295 MJ/hr |
275 MJ/hr |
| CW3H-CDD |
1 × Chimney + 2 × Duckbill |
95 MJ/hr + 2 × 105 MJ/hr |
305 MJ/hr |
265 MJ/hr |
| CW3H-DDD |
3 × Duckbill burners (18 jets each) |
105 MJ/hr per burner |
315 MJ/hr |
255 MJ/hr |
Specifications
- Dimensions (W × D × H): 1800 × 800 × 771 mm (1280 mm with splashback)
- Wok Size: 14 inch wok ring – suits 400–600 mm (16–24 inch) woks
- Gas Connections: 3 × R ¾ (BSP) male – 506 mm from rear, 340 mm from floor, spaced 68 mm, 668 mm, 1268 mm from RH side
- Water Connections: 2 × ½″ O.D. copper tube – 475 mm from rear, 325 mm from floor, 494 mm and 1094 mm from RH side
- Drain Connection: 1¼″ BSP waste – 107 mm from rear, 647 mm from floor, 203 mm from LH side
- Net Weight: 194 kg | Packed Weight: 294 kg (2.19 m³)
- Gas Types: Natural Gas or LPG (specify when ordering)
- Certifications: AGA 8593G | ISO 9001 manufacture
Construction & Cleaning
- Full stainless-steel chassis and exterior finish
- Double-skin insulated wok deck for heat retention and safety
- Heavy-duty cast-iron wok rings (removable)
- Stainless-steel spill tray and rear waste channel with removable grate
- Access to all service components from front and top for easy maintenance
